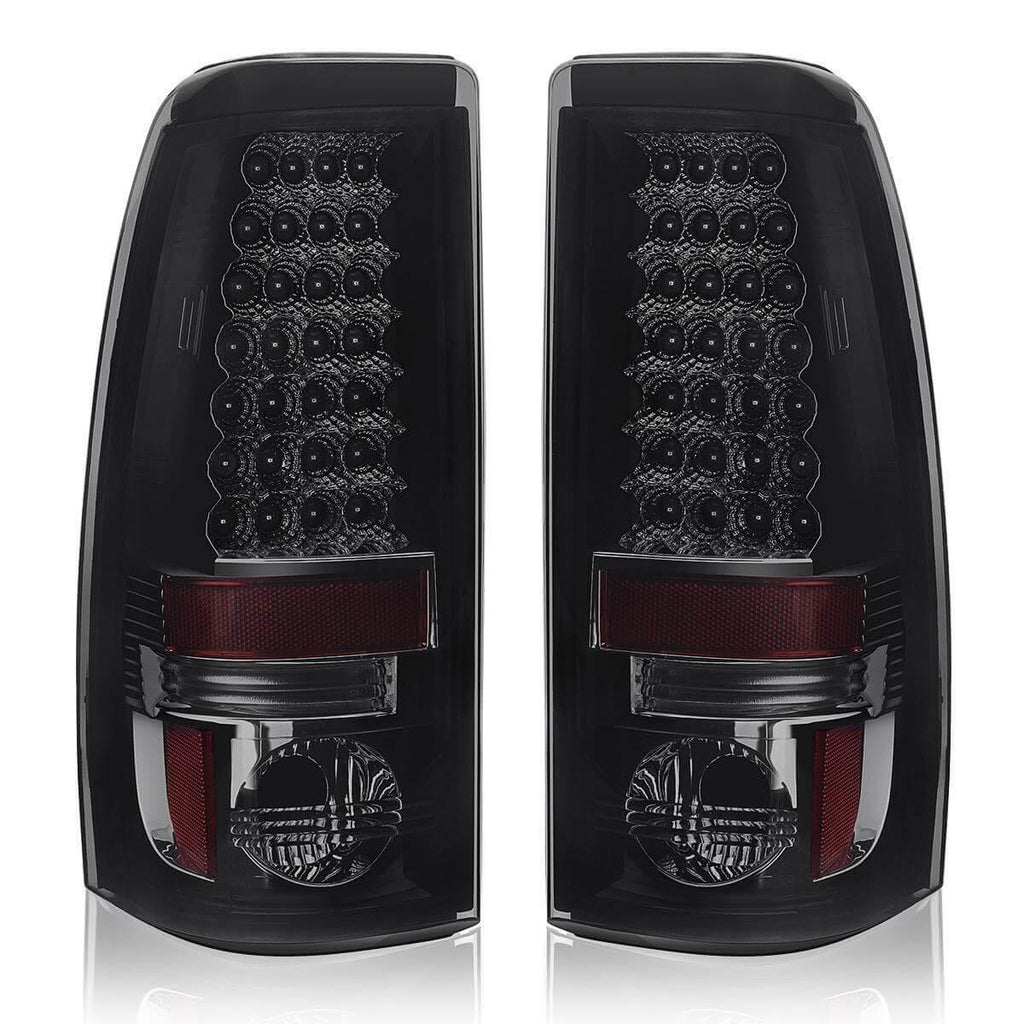

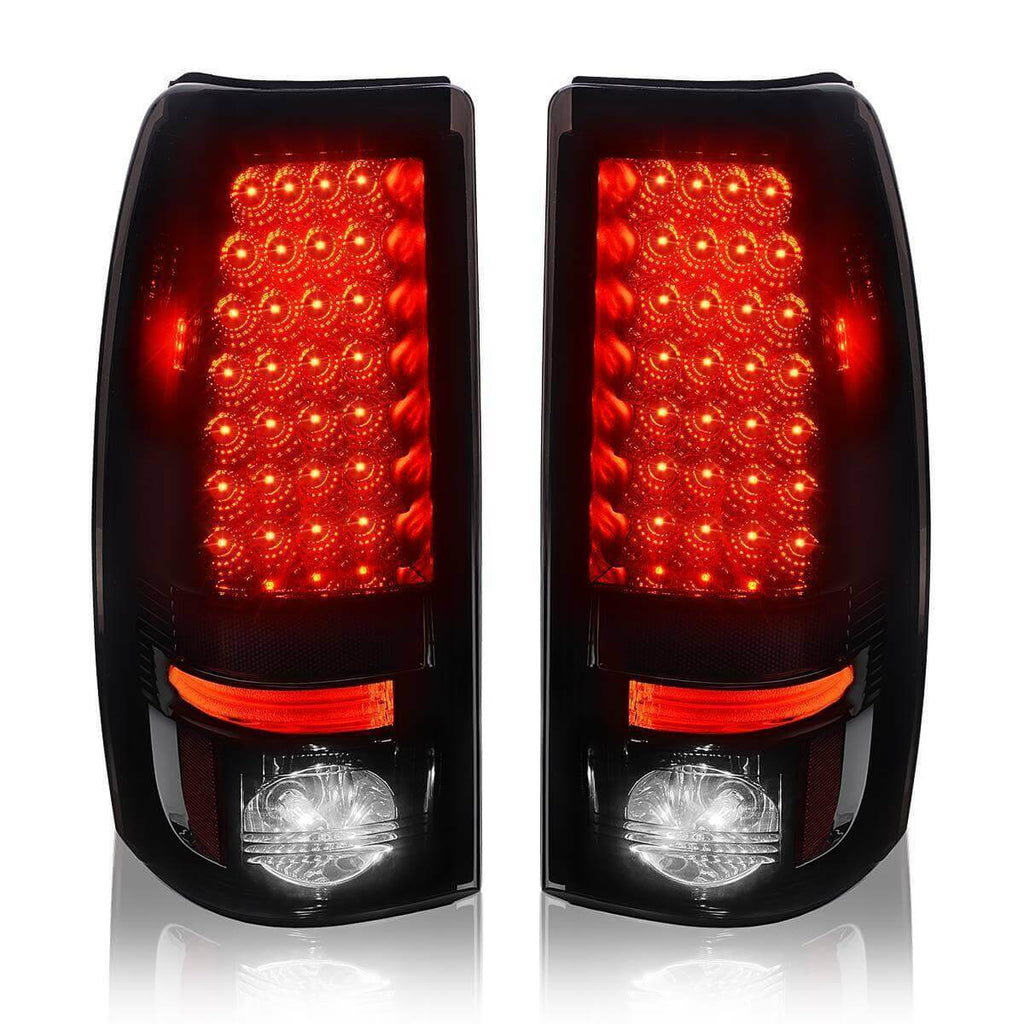

YITAMOTOR® 2003-2007 Chevy Silverado / 1999-2003 GMC Sierra LED Tail Lights Smoke Lens
 | Q&A

YITAMOTOR® 2003-2007 Chevy Silverado / 1999-2003 GMC Sierra LED Tail Lights Smoke Lens

: YITAMotor

SKU:CTLATL-5004-yita
 | Q&A

- Waterproof Coating to Prevent Water and Dust
- Plug-N-Play, No Need for Modification or Drilling
- Made from ABS & PC, Durable and impact-resistant
- LED Tube &LED Taillight Source, Superior Lighting
- 1 Year Warranty and 7/24 Hours Customer Services

SELECT YOUR VEHICLE

Regular price $113.99

files/payment_65f817cd-9339-4e9c-861c-773a76a3dbc7.png

Have a Question?

Ask a Question Call Us
  • Odd question ... can you put "INCANDESCENT" bulbs in for Parking, Brake, & Signal INSTEAD of LED's ?

    The bulb sizes are 3157A. Please make sure to use the right bulb.

  • Can over night shipping

    Sorry, we are not supported overnight shipping. It normally takes 3-5 business days.

Description

YITAMOTOR heavy-duty tail light housings are made of superior OEM Grade ABS plastic to ensure exceptional weather and impact resistance.

Fitment

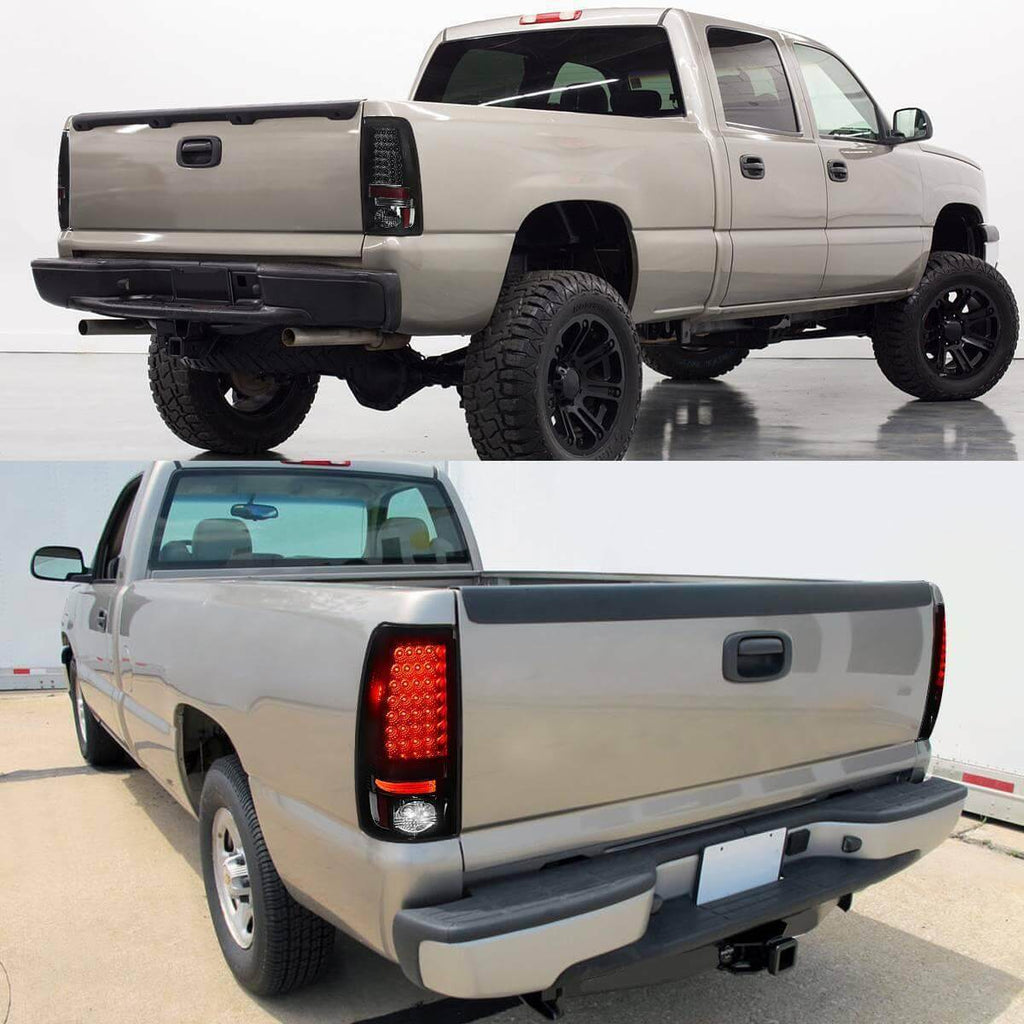

2003-2006 Chevy Silverado 1500/2500/1500HD/2500HD/3500
2007 Chevy Silverado Classic
1999-2002 GMC Sierra 1500/2500
2001-2002 GMC Sierra 1500HD/2500HD/3500

Professional installation would be highly recommended

Features

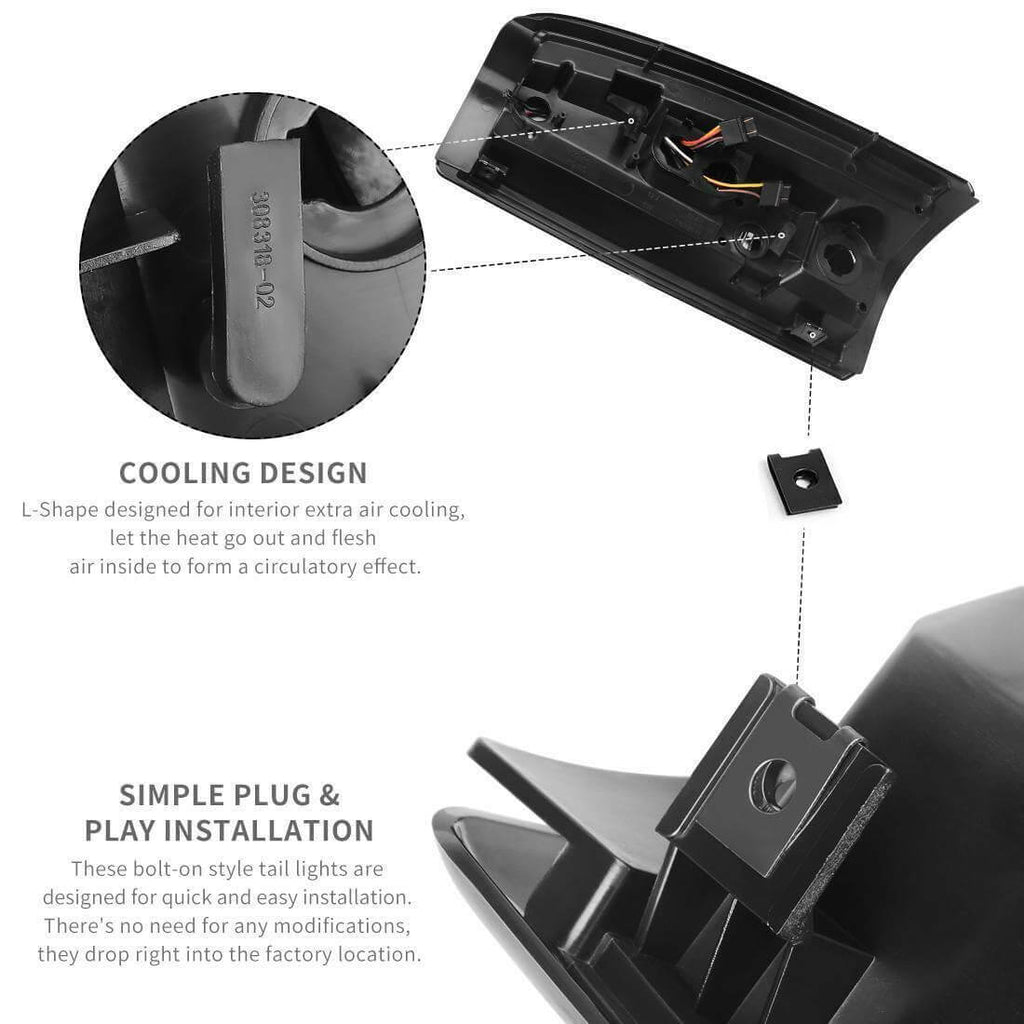

1. One-way Vent

Efficiently dissipates the indrawn moisture inside the housing due to temperature differences service life

2. High-Intensity LEDs

Your truck will stand out with YITAMOTOR's high-performance LEDs! make your vehicle highly visible to other drivers and passengers.

3. Plug-and-play Installation

Our plug-and-play LED tail lights are designed for quick and easy installation. There's no need for any modifications.

4. Tough as Nails Construction

YITAMOTOR heavy-duty tail light housings are made of superior OEM Grade ABS plastic to ensure exceptional weather and impact resistance. They will be your last replacements for a long time.

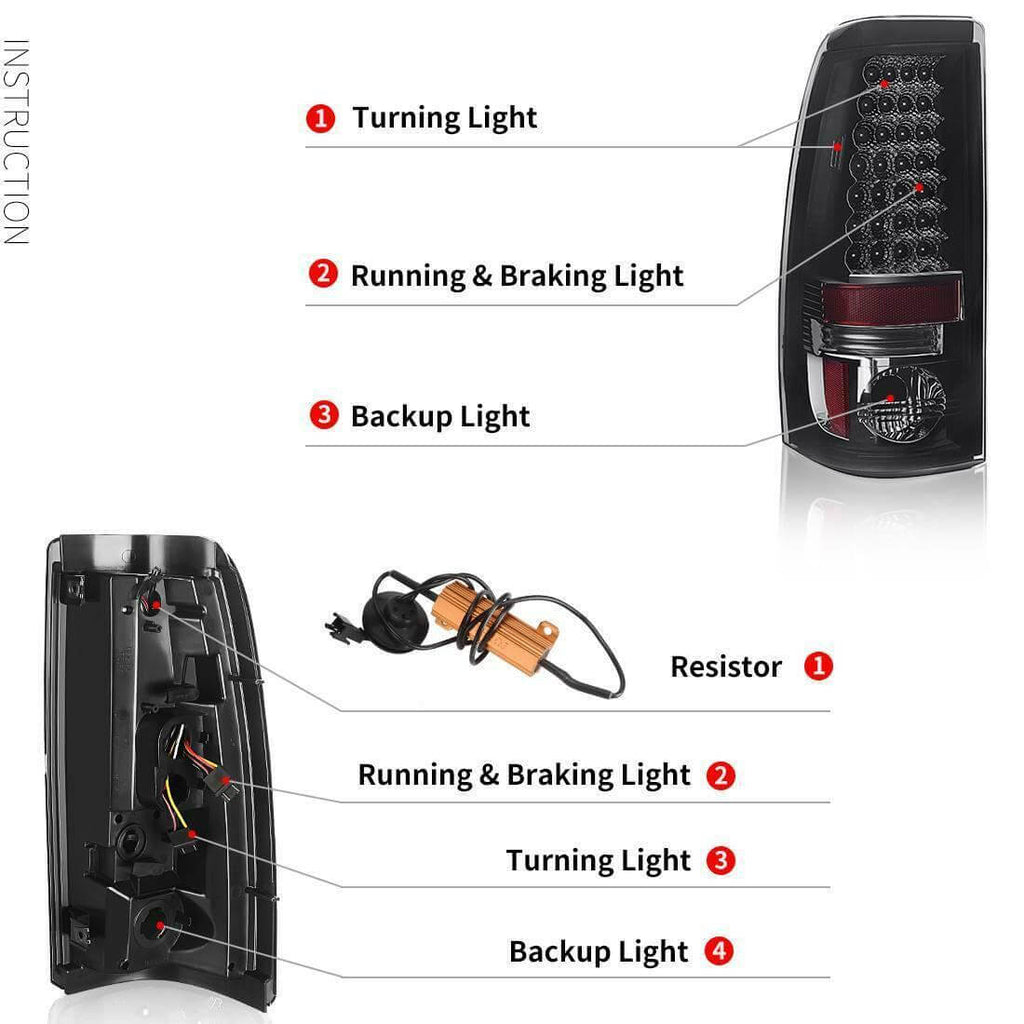

Installation Instruction

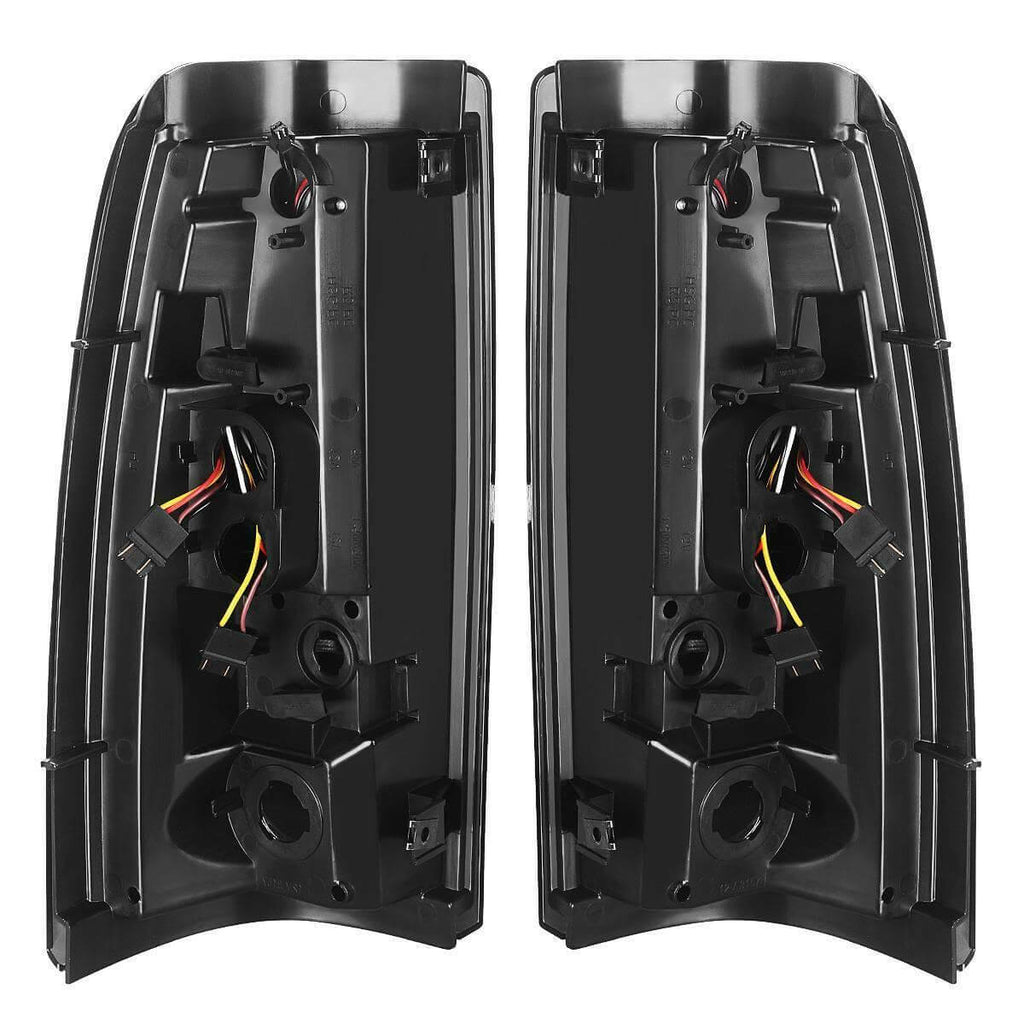

1. Connect the plug which has 2 wires (Brown & Yellow) to the lamp holder on your vehicle. (Brown Wire - Negative Pole, Yellow Wire - Turning Light);

2. If it lights up, unplug and mark the positive and negative directions of the plug. Go to step 3; If it does not light up, unplug and reverse the direction, then insert it again to test if the light lights up or not;

3. Connect the plug which has 4 wires to the lamp holder on your vehicle. (Black/Brown Wire - Negative Pole, Red Wire - Position Light, Yellow Wire - Brake Light);

4. If it lights up, unplug and mark the positive and negative directions of the plug. Go to step 5; If it does not light up, unplug and reverse the direction, then insert it again to test if the light lights up or not;

5. Insert the plugs into the corresponding lamp holders according to the positive and negative directions, light up and test the function. Then install the taillights.

Note: LED is divided into positive and negative poles, if not installed according to the instructions, there will be a risk of being short circuit

Package Included

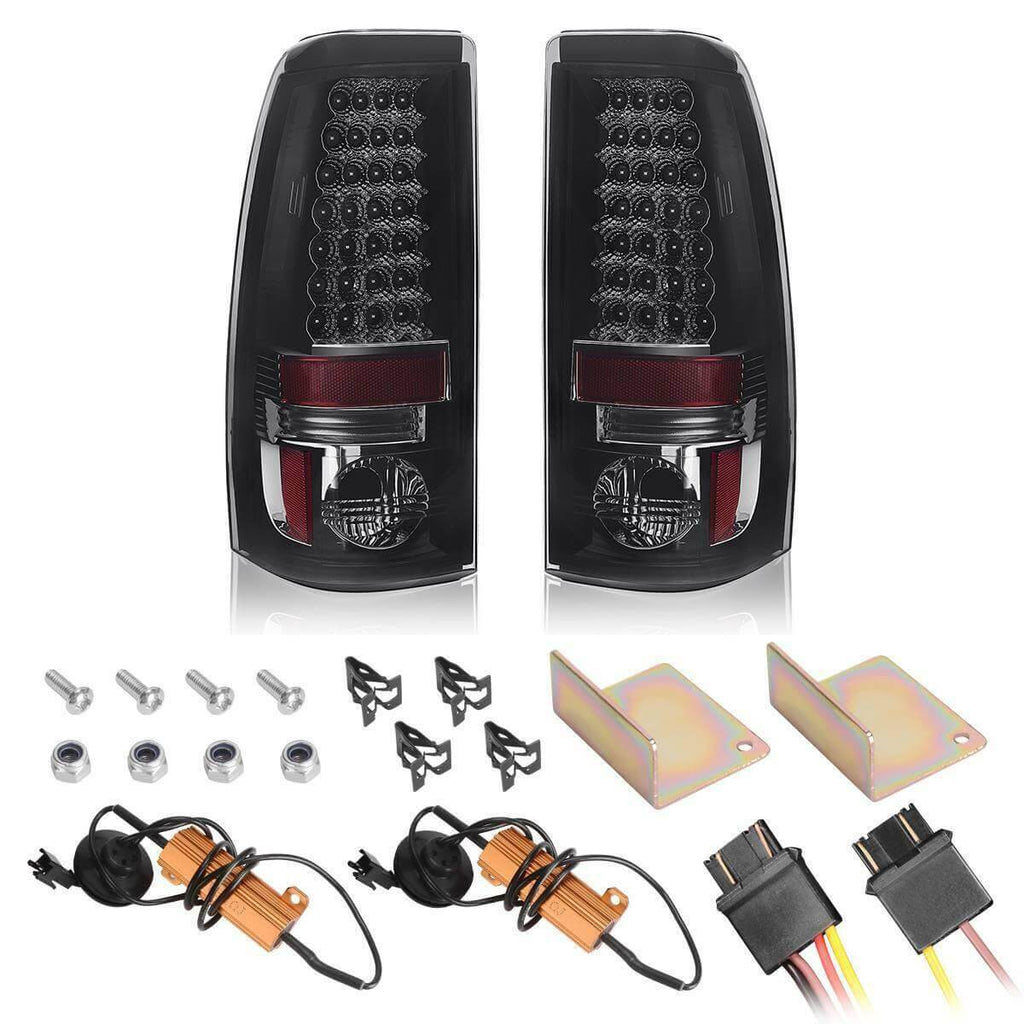

1 pair of taillights (passenger & driver side)

Warranty

warning

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
Visit: Prop 65 Warning

    warning

    California Residents: Prop 65 Warning

    WARNING: Cancer and Reproductive Harm

    Specifications

    Brand YITAMOTOR
    Material ABS Plastic Housing / Polycarbonate Lens
    Housing Color Black
    Lens Color Smoke

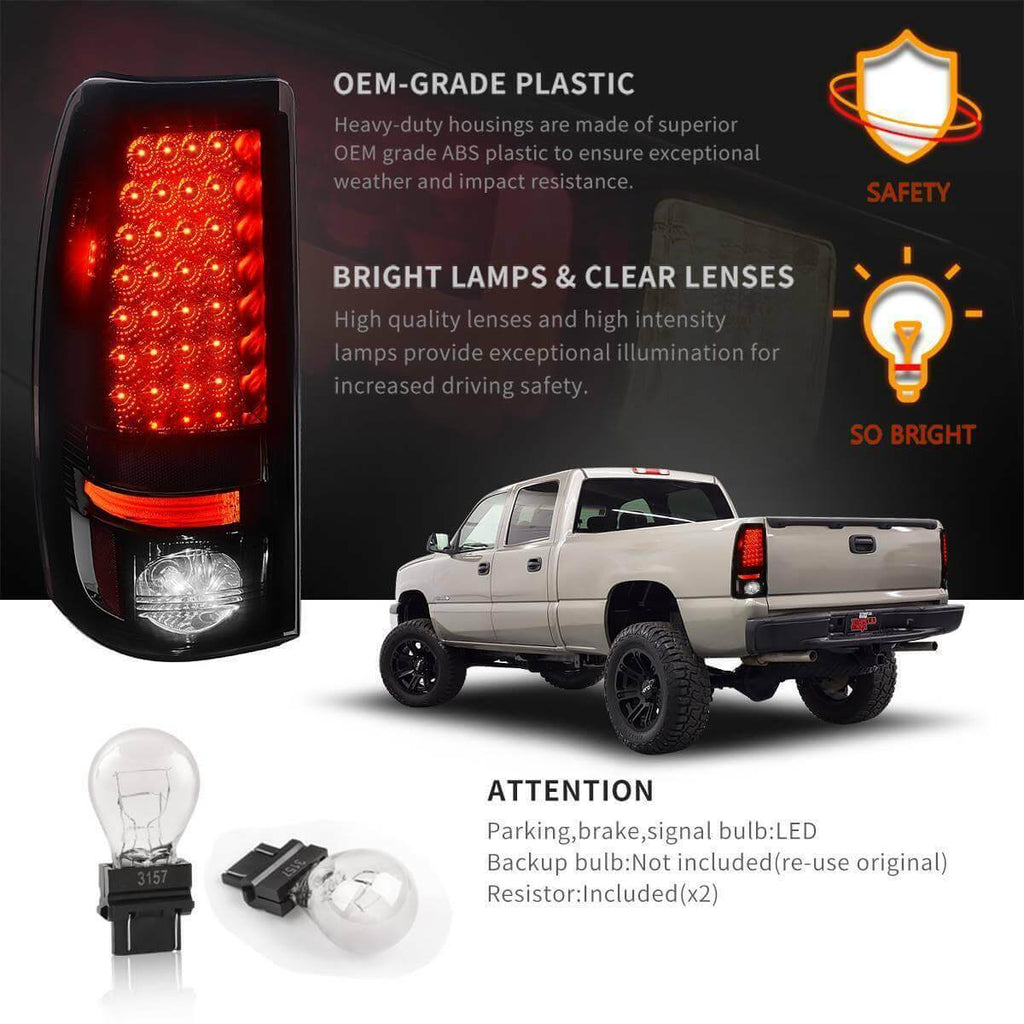

    Bulb Type 3157A (Bulbs Not Included)
    OEM Part Number GM2801186, GM2800186, GM2801174,GM2800174
    Other Part Number 11518600, 11518500, 15113226, 15273472, 19169005, 15113225, 15273473, 19169004
    Manufacturer Part Number ATTL5004
    Package included 1 Pair of Taillight (Driver&Passenger Side)
    Warranty 1 Year
