Pair Headlight Assembly for 2006-2011 Honda Civic Coupe 2 Door Black Housing Headlamp

Product Description

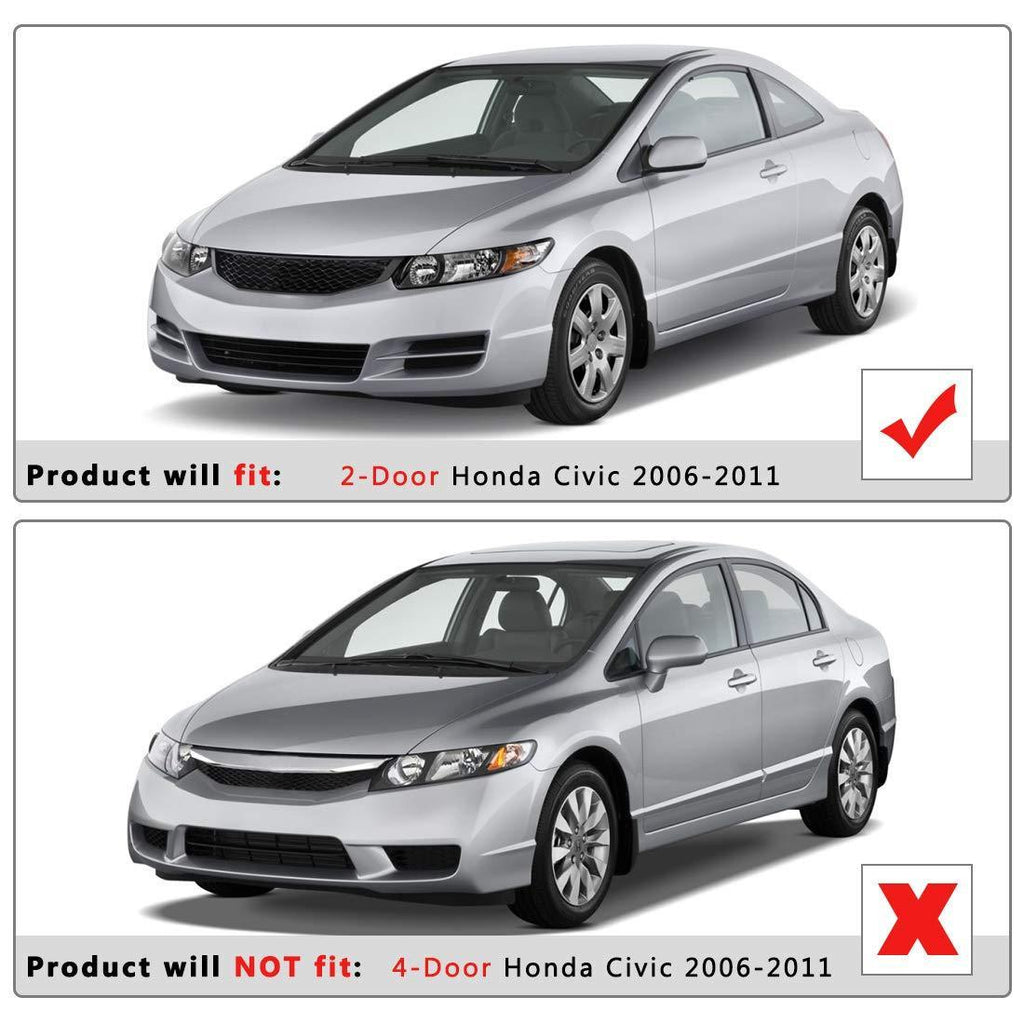

Fitment

2006 -2011 Honda Civic 2dr coupe

Features

• Tougher-Than-Nails Construction

YITAMOTOR headlights are of equal quality to the original manufacturer set at a lower price. YITAMOTOR’s headlights are made of ABS & PC, which are highly temperature and impact-resistant materials. YITAMOTOR headlights are both extremely durable and compact.

• Clear Visibility

The high-grade clear lens offers better visibility, and the replacement headlight assembly can light up the entire road as a much brighter alternative to dim, yellow headlights

• Waterproof, Dustproof, Quakeproof

Our headlights are Weather sealed and prevent any water from seeping into your vehicle’s electrical system.

• Plug-n-Play Installation

Our replacement headlights fit directly into your vehicle’s factory wiring harness for hassle-free installation. No additional modifications or drilling are required.

Installation

• Step 1: Consult a vehicle manual to find out which component needs to be removed to get access to the headlight assembly. Depending on the year, make, and model of the vehicle, the front grill may need to be removed. To remove the grille, you have to undo the screws or any fastener used to secure it.
• Step 2: Undo the screws, clips, or retainer springs that hold the headlight in place. You may have to use a flat-blade or Phillips screwdriver to remove any of these fasteners that are typically located at the top and bottom of the headlight.
• Step 3: Disconnect the wiring from the assembly. After the wiring is removed, you can now detach the headlight from the vehicle to replace it with a new one.
• Step 4: Fit in the new headlight assembly. Fix the new headlight into place and make sure that the screws, clips, or retainer springs used are sealed.
• Step 5: Reconnect the wiring that was unplugged from the assembly.
• Step 6: Put back the grille and other components that you removed. Seal them back into place.
• Step 7: Test the new assembly. Switch on the headlights to see if they’re working. If not, then make some adjustments and check the manual.

How to adjust the Headlight?

Before you begin to adjust the light, make sure to check the alignment of your lights first. Park the vehicle about 10 to 25 feet from the wall with the lights aimed at the wall. The centerlines of the headlights should not be any higher than 3.5 feet above the ground.

• 1. Find the adjustment screws. Firstly, locate the adjustment screws on your vehicle.
• 2. Adjust the headlights individually. The headlights should be adjusted one at a time. Put a rag or towel over a chair in front of the light you want to block. Covering the light assembly directly can damage the plastic lens.
• 3. Adjust the vertical field. The screw on the top of the light housing should be turned clockwise to raise the lights and counterclockwise will lower the light. The headlight should be adjusted until the top of the most intense part of the light beam shines directly on or just below the center of the tape line on the wall.
• 4. Adjust the horizontal field. The screw on the side of the light housing should be turned to get the right/left adjustment correct. Adjust the lens so that the most intense part of the beam is to the right of the vertical line.
• 5. Test your results.

Specifications
