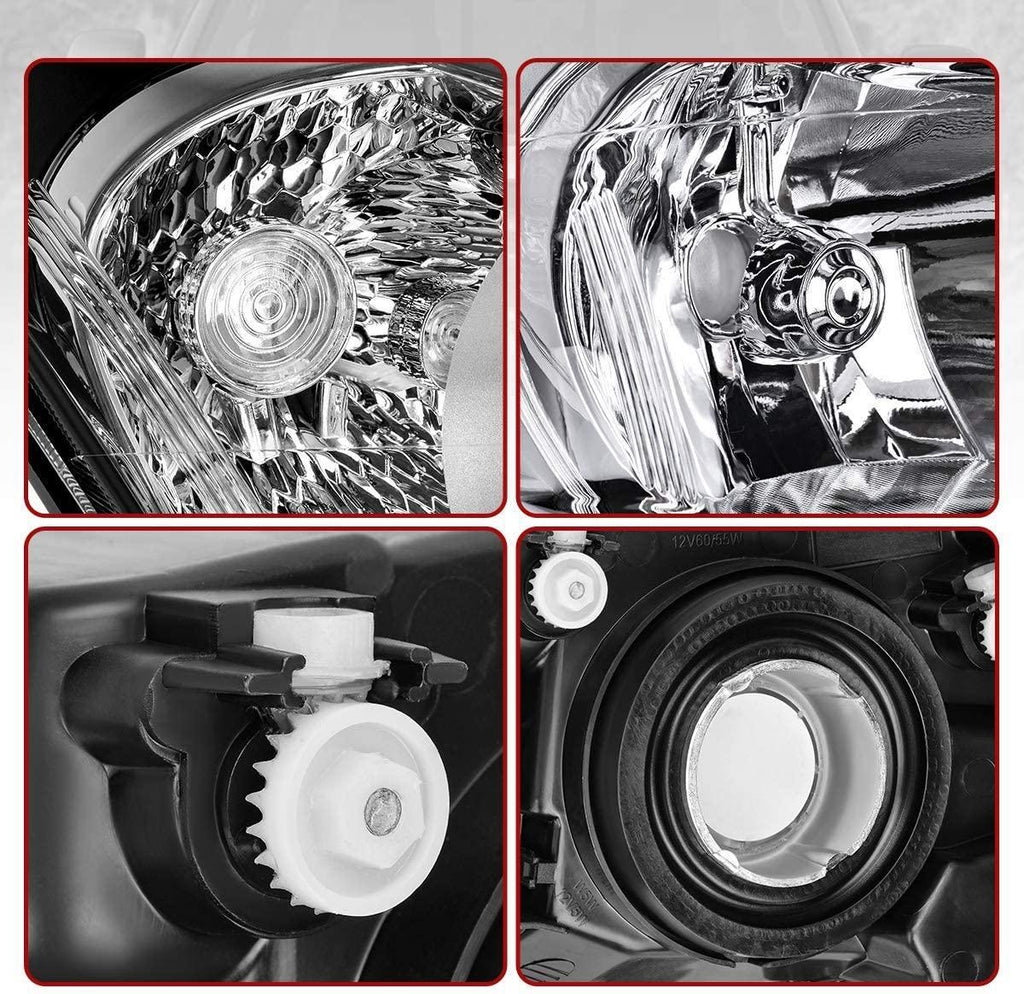

2011-2015 Chevy Chevrolet Cruze Headlight Assembly Black Housing Clear Lens

Product Description

Driving at night can be pretty tricky, especially if your headlights no longer light up the road. When you drive with dim headlights, you not only put yourself at risk but everyone else on the road as well. Stay safe and replace your headlights as soon as they begin to lose their shine. Put yourself and other drivers at ease, upgrade with a new high-performance set of YITAMOTOR headlights, and feel more confident when driving at night.

Fitment

• 2011-2015 Chevy Cruze [4-Door Sedan]

Features

• Tougher-Than-Nails Construction

Heavy-duty housings are made of superior OEM Grade ABS plastic to ensure exceptional resistance to weather and impact that guarantees durability for years ahead.

• Plug-n-Play Installation

As a fully compatible replacement for factory parts, our bolt-on style headlights are designed for quick and easy installation, requiring no modification or drilling.

• Guaranteed Quality

Our headlights are thoroughly tested to deliver smooth operation as well as for impact and heat resistance and endurance against rough road conditions over a long period of time. The units are completely sealed to prevent moisture from being trapped inside the housing.

• Product Compliance

YITAMOTOR strictly adheres to DOT & SAE safety standards which all OE light manufacturers must abide by.

Installation

• 1. Undo the screws, clips, or retainer springs that hold the headlight in place.
• 2. Disconnect the wiring from the assembly.
• 3. Detach the headlight from the vehicle to replace it with a new one.
• 4. Fit in the new headlight assembly.
• 5. Fix the new headlight into place and make sure that the screws, clips, or retainer springs used are sealed.
• 6. Reconnect the wiring that was unplugged from the assembly.
• 7. Put back the grille and other components that you removed. Seal them back into place.
• 8. Test the new

How to adjust the Headlight

Before you begin to adjust the light, make sure to check the alignment of your lights first. Park the vehicle about 10 to 25 feet from the wall with the lights aimed at the wall. The centerlines of the headlights should not be any higher than 3.5 feet above the ground.

• 1. Find the adjustment screws. Firstly, locate the adjustment screws on your vehicle.
• 2. Adjust the headlights individually. The headlights should be adjusted one at a time. Put a rag or towel over a chair in front of the light you want to block. Covering the light assembly directly can damage the plastic lens.
• 3. Adjust the vertical field. The screw on the top of the light housing should be turned clockwise to raise the lights and counterclockwise will lower the light. The headlight should be adjusted until the top of the most intense part of the light beam shines directly on or just below the center of the tape line on the wall.
• 4. Adjust the horizontal field. The screw on the side of the light housing should be turned to get the right/left adjustment correct. Adjust the lens so that the most intense part of the beam is to the right of the vertical line.
• 5. Test your results.

Specifications
