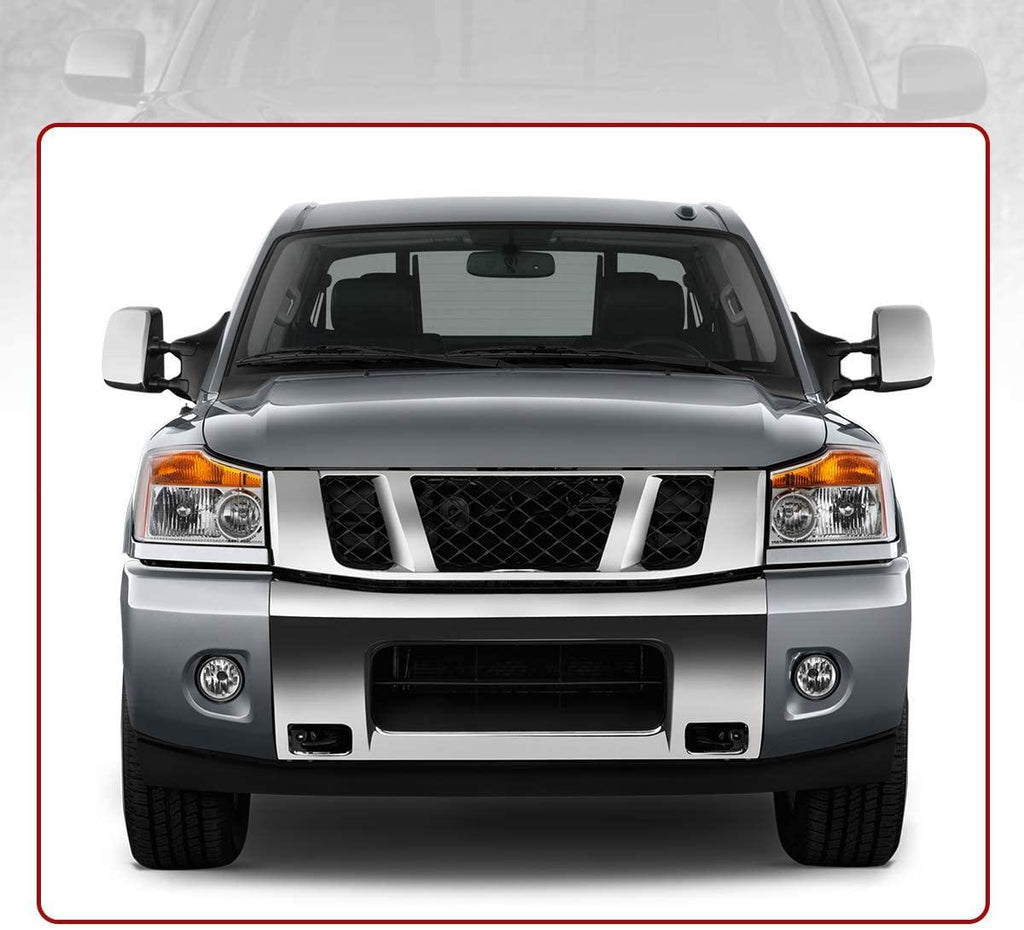

Headlight Assembly Compatible with 2004-2015 Nissan Titan / 05-07 Armada / 04 Pathfinder Armada,Chrome Housing Amber Reflector Clear lens

Description

Compatible with:

• 2004-2015 Nissan Titan
• 2004-2004 Nissan Pathfinder Armada
• 2005-2007 Nissan Armada
• [4-Door Extended Cab | 4-Door Crew Cab | 4-Door Sport Utility]

Bulb size:

• High Beam Bulb type: 9005 (Not included)
• Low Beam Bulb type: 9005 (Not included)

Color:

Chrome Housing+Amber Reflector+Clear lens

Item needed:

• re-use original factory bulbs
• Tools installation

Product Features:

• OEM Part Number:NI2503154, NI2502154, NI2502173, NI2503173, NI2502168, NI2503168
• SAE/DOT approved for street legal
• Made by OEM approved & ISO certified manufacturers, with materials that meet or exceed OEM requirements.
• Easy installation, direct bolt-on, no modifications

Package includes:

1 Pair Left & Right headlight Housing

How to install your headlight:

1. Undo the screws, clips, or retainer springs that hold the headlight in place.
2. Disconnect the wiring from the assembly.
3. Detach the headlight from the vehicle to replace it with a new one.
4. Fit in the new headlight assembly.
5. Fix the new headlight into place and make sure that the screws, clips, or retainer springs used are sealed.
6. Reconnect the wiring that was unplugged from the assembly.
7. Put back the grille and other components that you removed. Seal them back into place.
8. Test the new

How to adjust the Headlight?

Before you begin to adjust the light, make sure to check the alignment of your lights first. Park the vehicle about 10 to 25 feet from the wall with the lights aimed at the wall. The centerlines of the headlights should not be any higher than 3.5 feet above the ground.

1. Find the adjustment screws. Firstly, locate the adjustment screws on your vehicle.

2. Adjust the headlights individually. The headlights should be adjusted one at a time. Put a rag or towel over a chair in front of the light you want to block. Covering the light assembly directly can damage the plastic lens.

3. Adjust the vertical field. The screw on the top of the light housing should be turned clockwise to raise the lights and counterclockwise will lower the light. The headlight should be adjusted until the top of the most intense part of the light beam shines directly on or just below the center of the tape line on the wall.

4. Adjust the horizontal field. The screw on the side of the light housing should be turned to get the right/left adjustment correct. Adjust the lens so that the most intense part of the beam is to the right of the vertical line.

5. Test your results.
