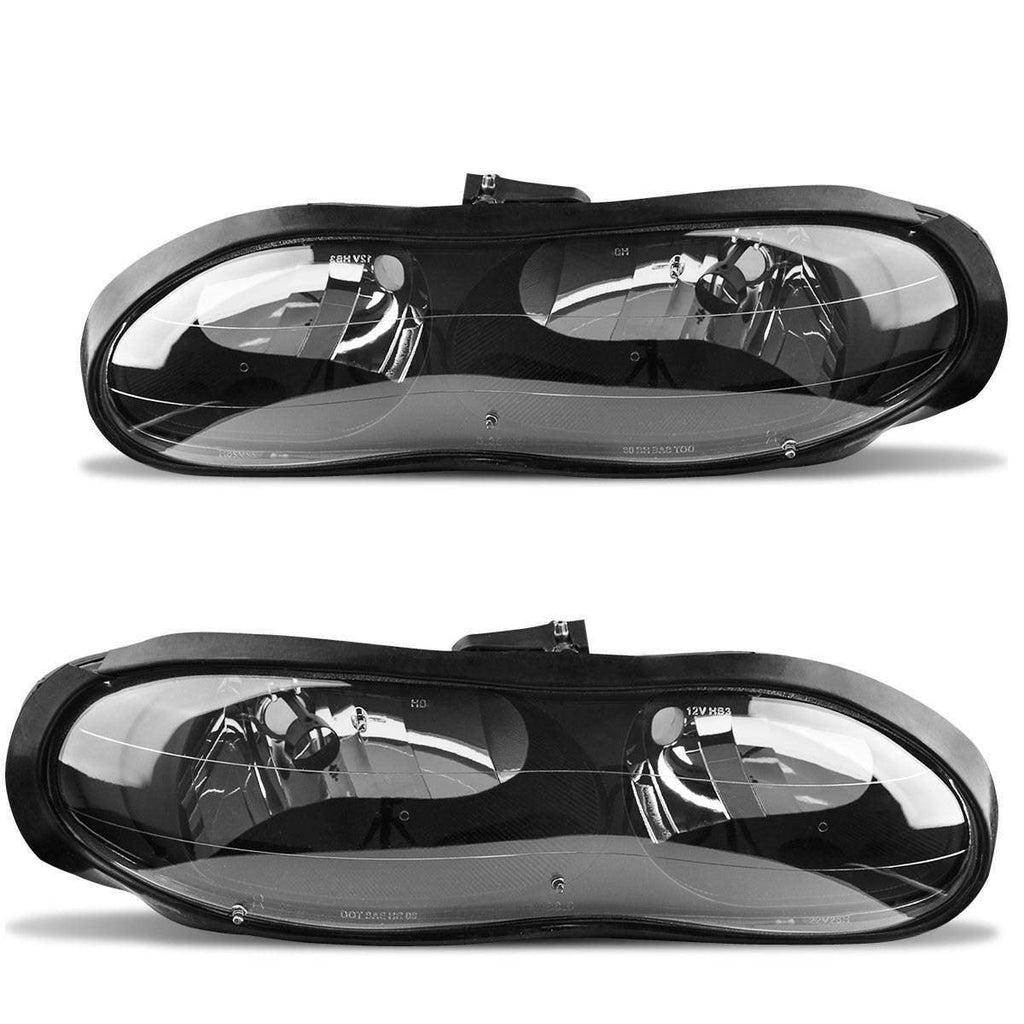

For 1998-2002 Chevy Camaro Headlight Assembly Black Housing with Clear Lens (Driver Side and Passenger Side)

Product Description

Tested In Simulated Rain/Humidity/Shock

High-quality aftermarket replacement headlights

Professional installation is highly recommended

All Lamps come without bulbs, Should be re-use original factory bulbs.

The rated power for bulbs is 70W. Users will not be suggested to use bulbs whose power is above 70W.

Specifications:

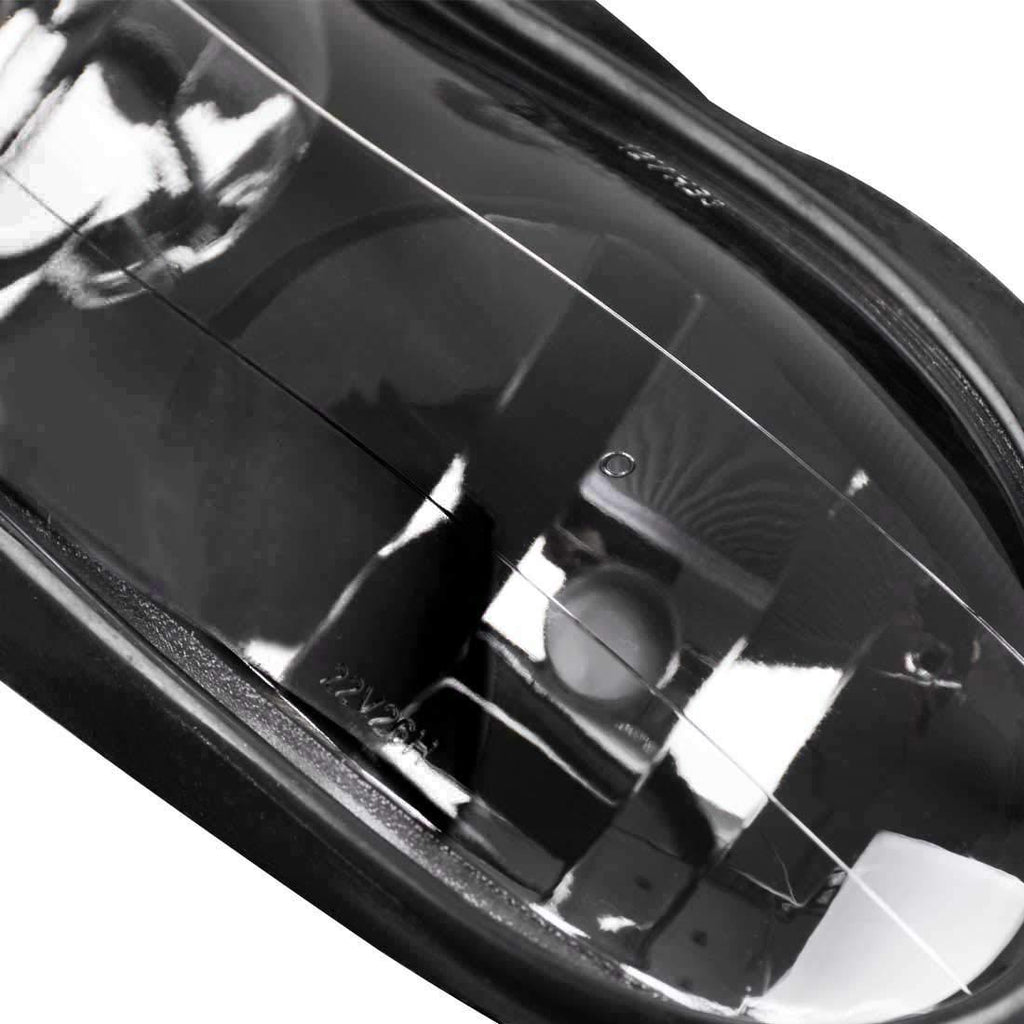

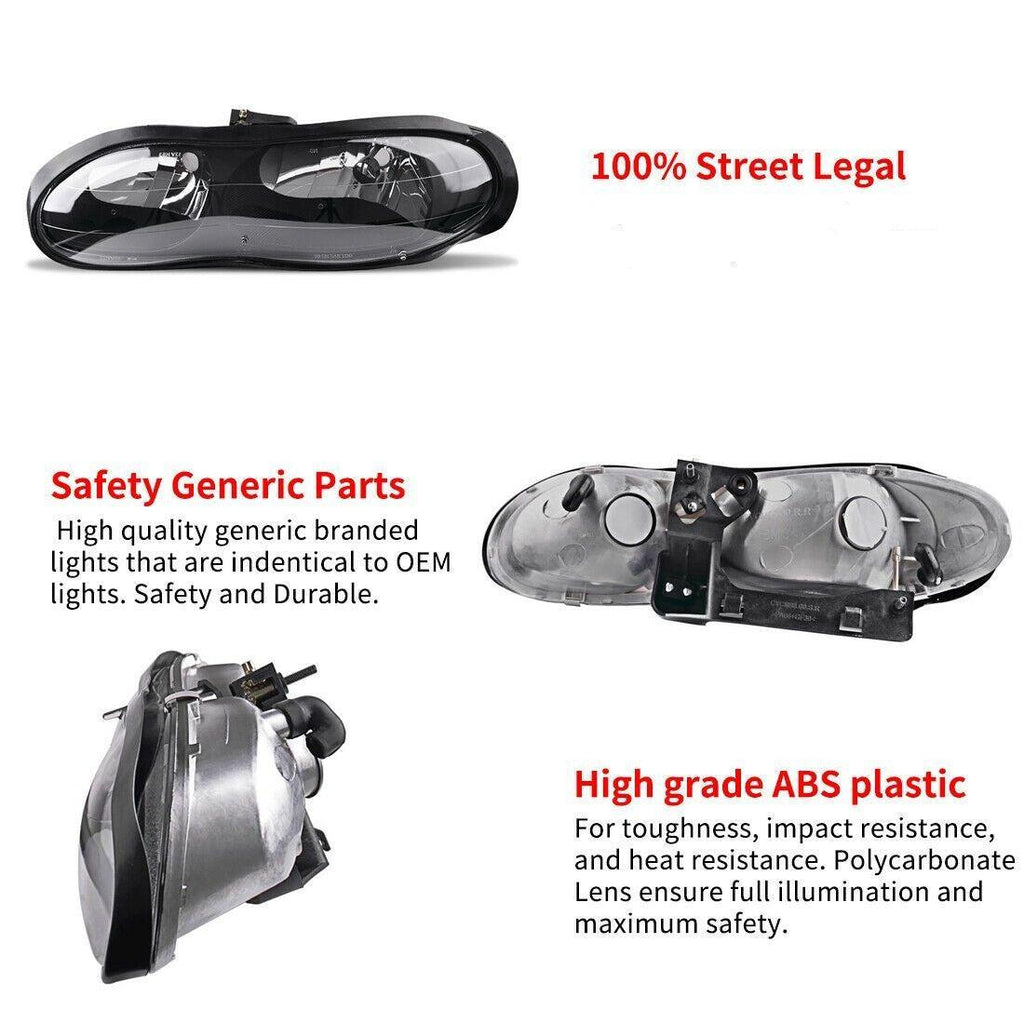

Material: ABS Plastic Housing / Polycarbonate Lens

Color: Black Housing + Clear Lens

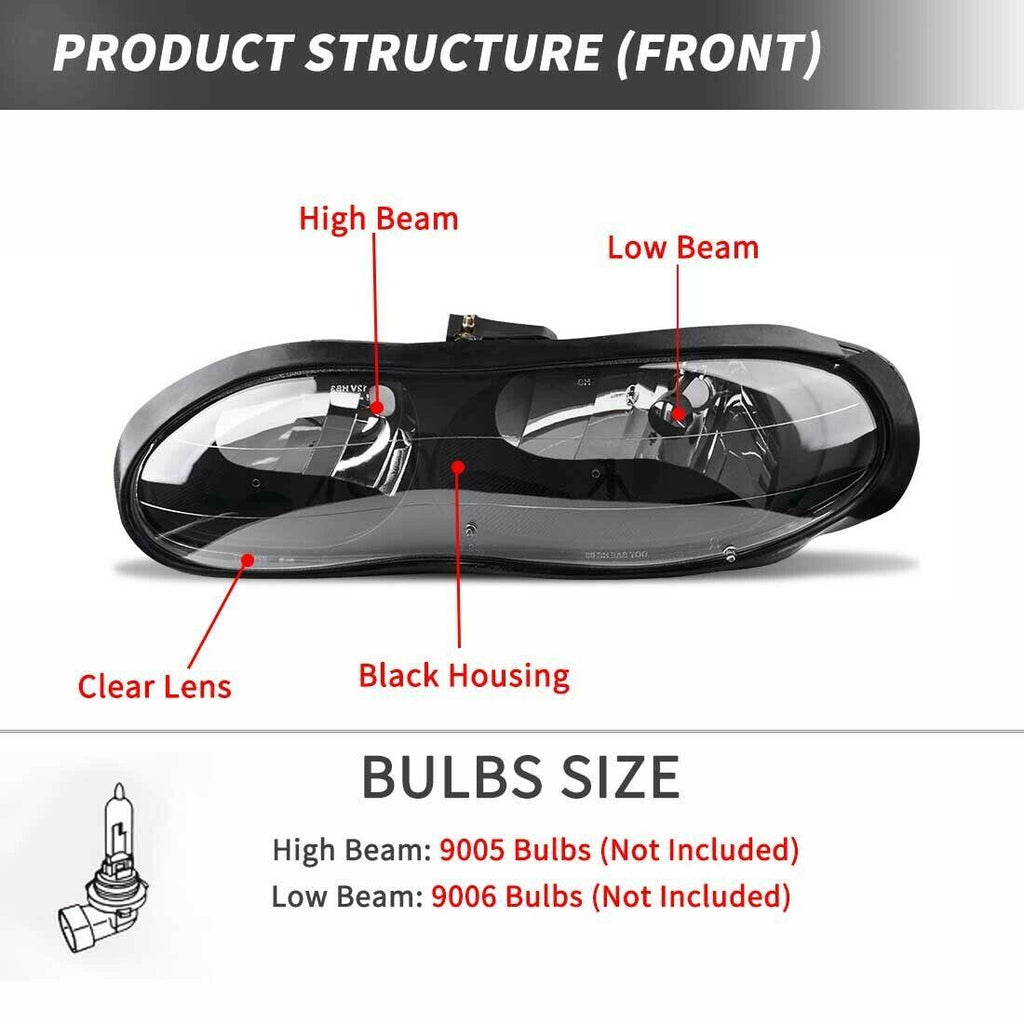

High Beam: HB3 9005 (Not included)

Low Beam: HB4 9006(Not included)

PART NUMBER: 1221-0083L/1221-0083R

OEM: 16525313/16525314

 Fitment :

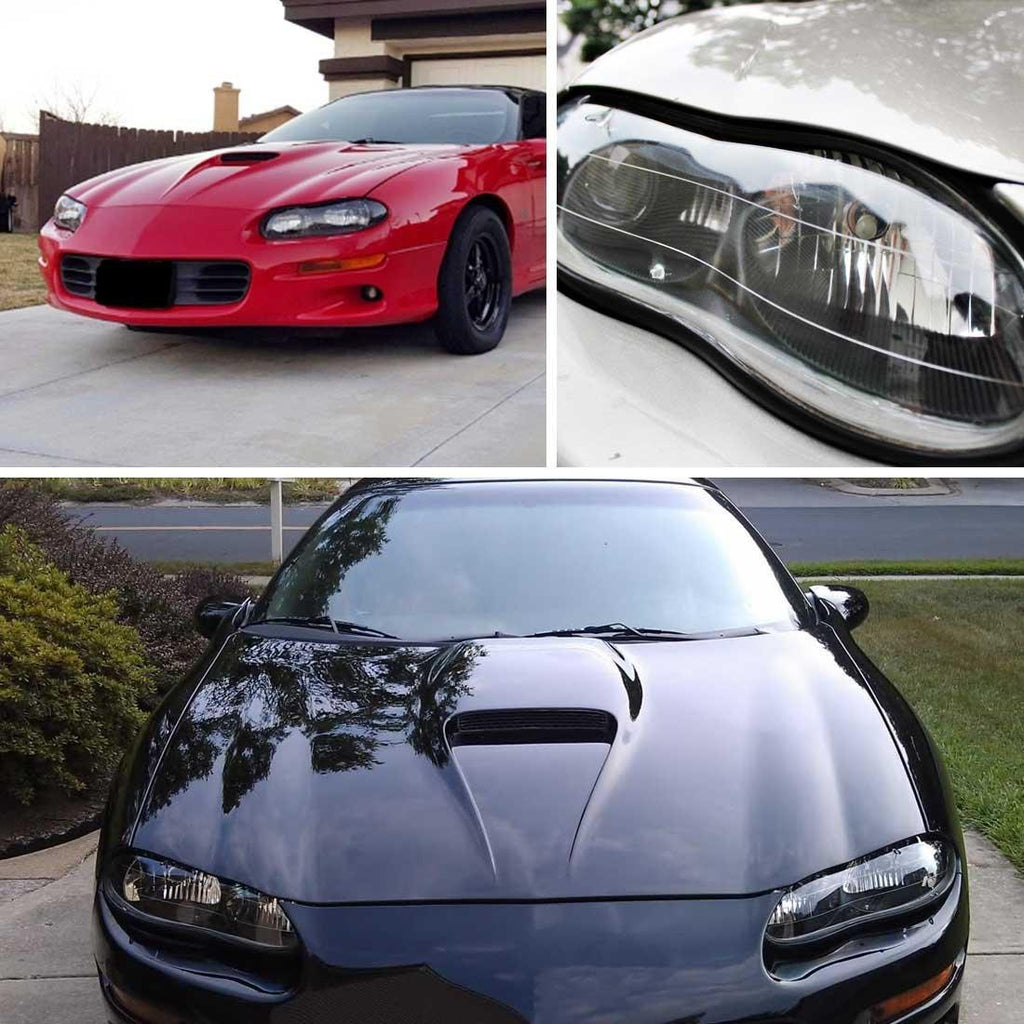

1998-2002 Chevy Camaro

Package Included:

2x LH Driver Side + RH Passenger Side Headlights Headlamps Assembly Kit

Installation recommendations:

Step 1: Consult a vehicle manual to find out which component needs to be removed to get access to the headlight assembly. Depending on the year, make, and model of the vehicle, the front grill may need to be removed. To remove the grille, you have to undo the screws or any fastener used to secure it.

Step 2: Undo the screws, clips, or retainer springs that hold the headlight in place. You may have to use a flat-blade or Phillips screwdriver to remove any of these fasteners that are typically located at the top and bottom of the headlight.

Step 3: Disconnect the wiring from the assembly. After the wiring is removed, you can now detach the headlight from the vehicle to replace it with a new one.

Step 4: Fit in the new headlight assembly. Fix the new headlight into place and make sure that the screws, clips, or retainer springs used are sealed.

Step 5: Reconnect the wiring that was unplugged from the assembly.

Step 6: Put back the grille and other components that you removed. Seal them back into place.

Step 7: Test the new assembly. Switch on the headlights to see if they’re working. If not, then make some adjustments and check the manual.

How to adjust the Headlight?

Before you begin to adjust the light, make sure to check the alignment of your lights first. Park the vehicle about 10 to 25 feet from the wall with the lights aimed at the wall. The centerlines of the headlights should not be any higher than 3.5 feet above the ground.

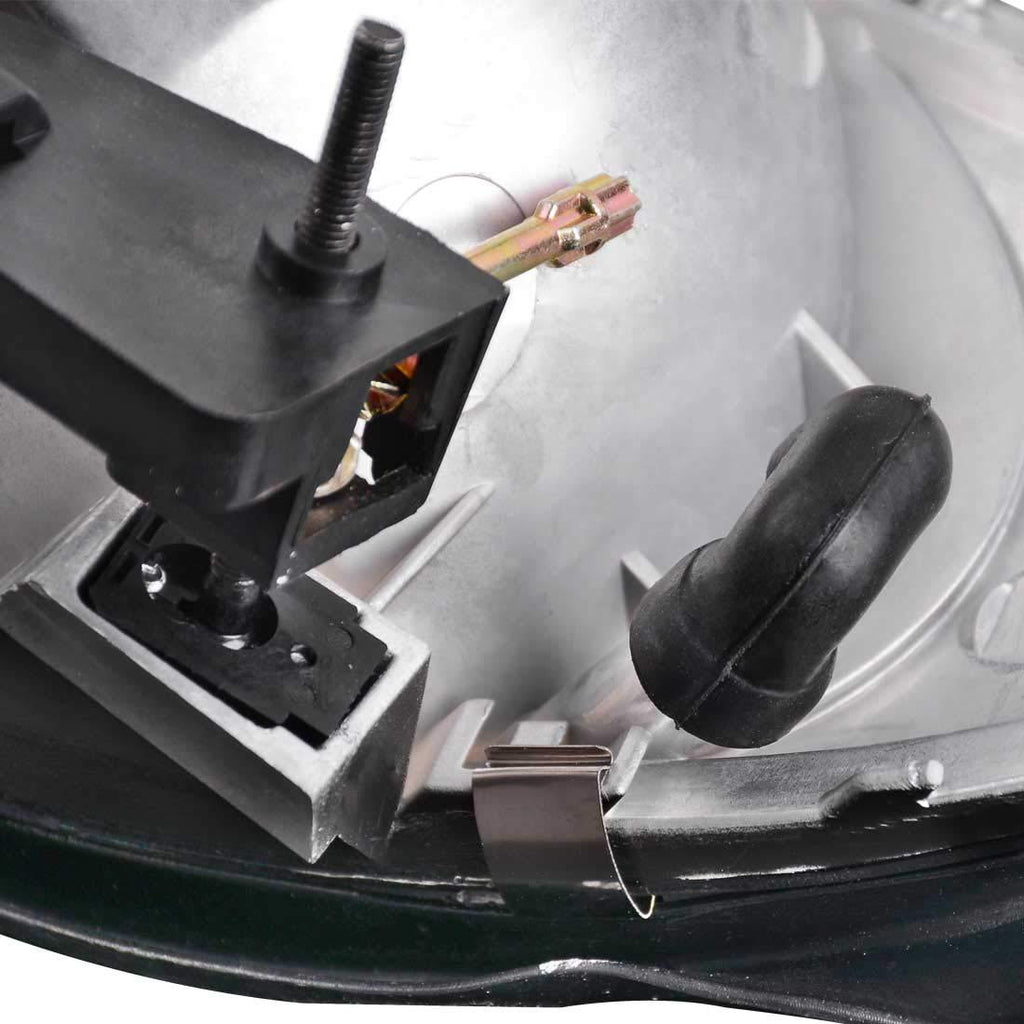

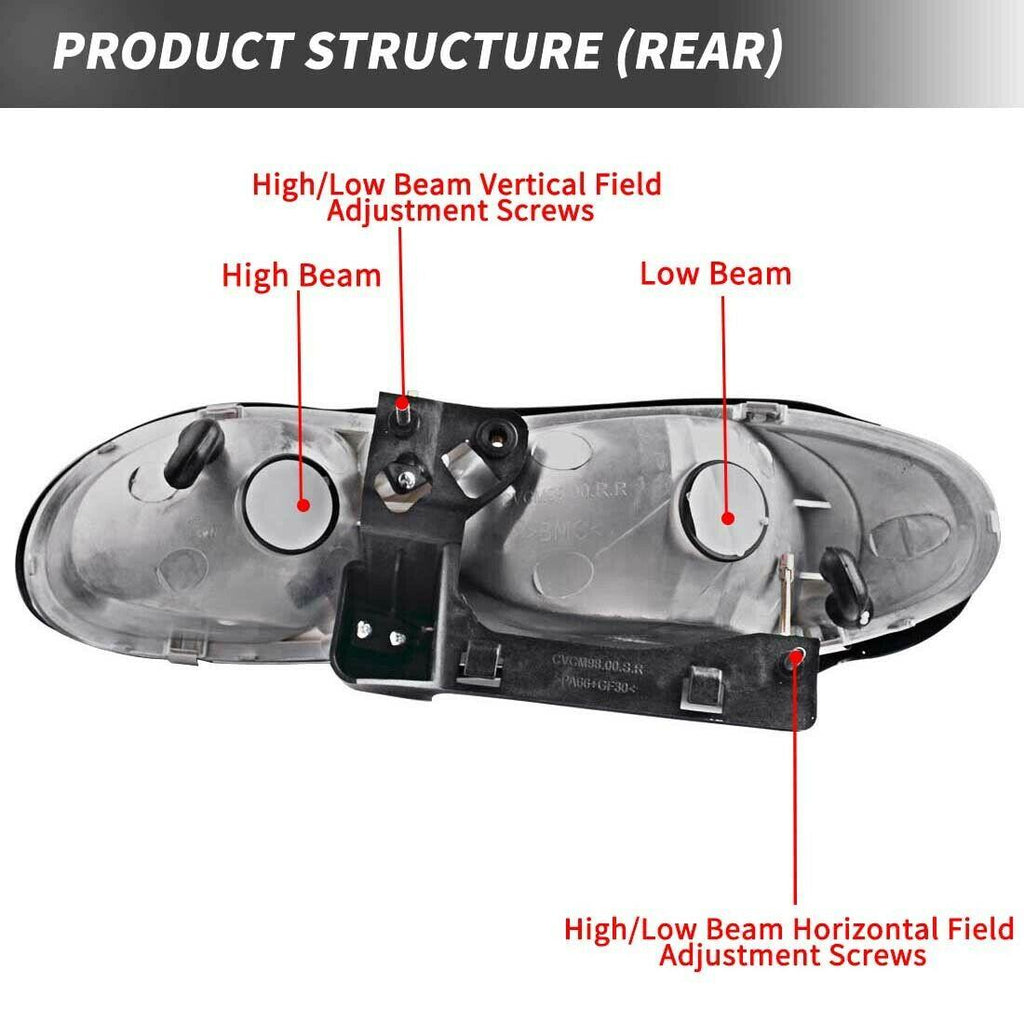

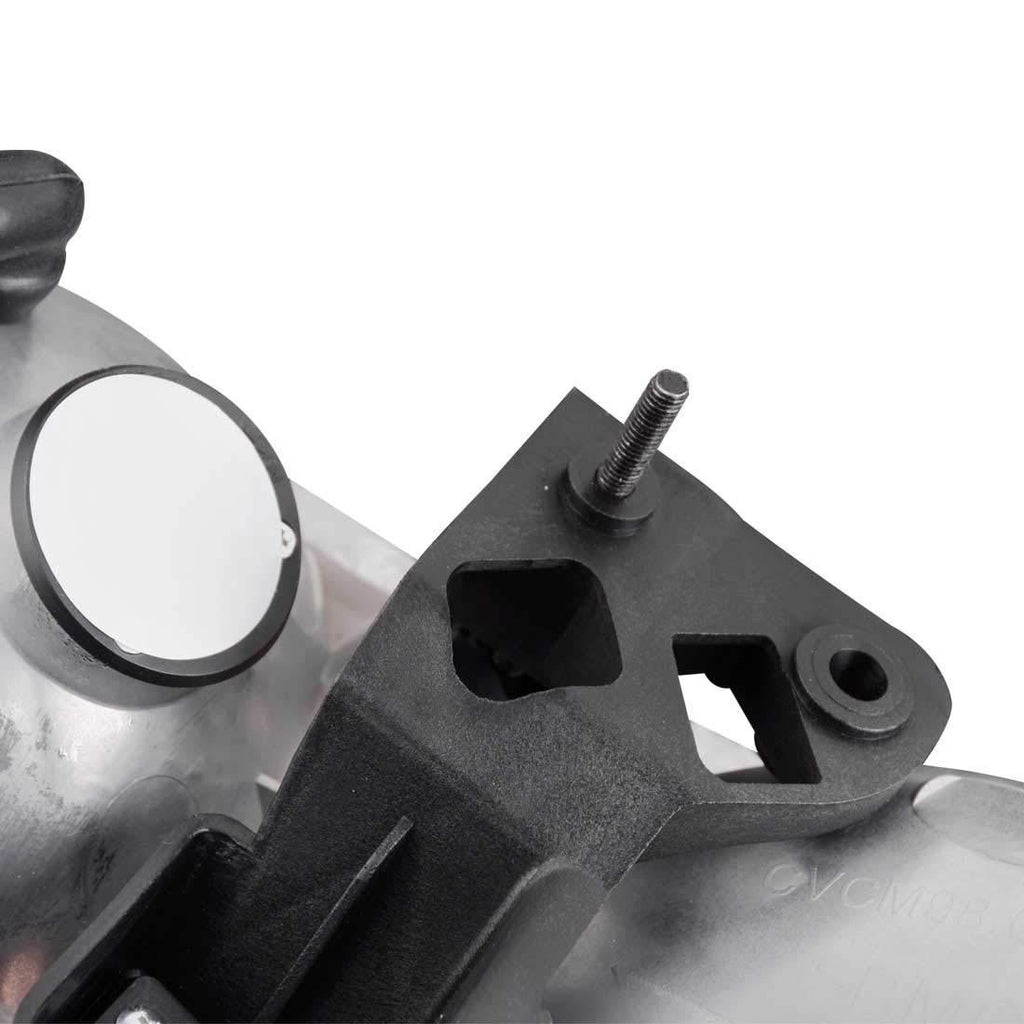

1. Find the adjustment screws. Firstly, locate the adjustment screws on your vehicle.

2. Adjust the headlights individually. The headlights should be adjusted one at a time. Put a rag or towel over a chair in front of the light you want to block. Covering the light assembly directly can damage the plastic lens.

3. Adjust the vertical field. The screw on the top of the light housing should be turned clockwise to raise the lights and counterclockwise will lower the light. The headlight should be adjusted until the top of the most intense part of the light beam shines directly on or just below the center of the tape line on the wall.

4. Adjust the horizontal field. The screw on the side of the light housing should be turned to get the right/left adjustment correct. Adjust the lens so that the most intense part of the beam is to the right of the vertical line.

5. Test your results.
