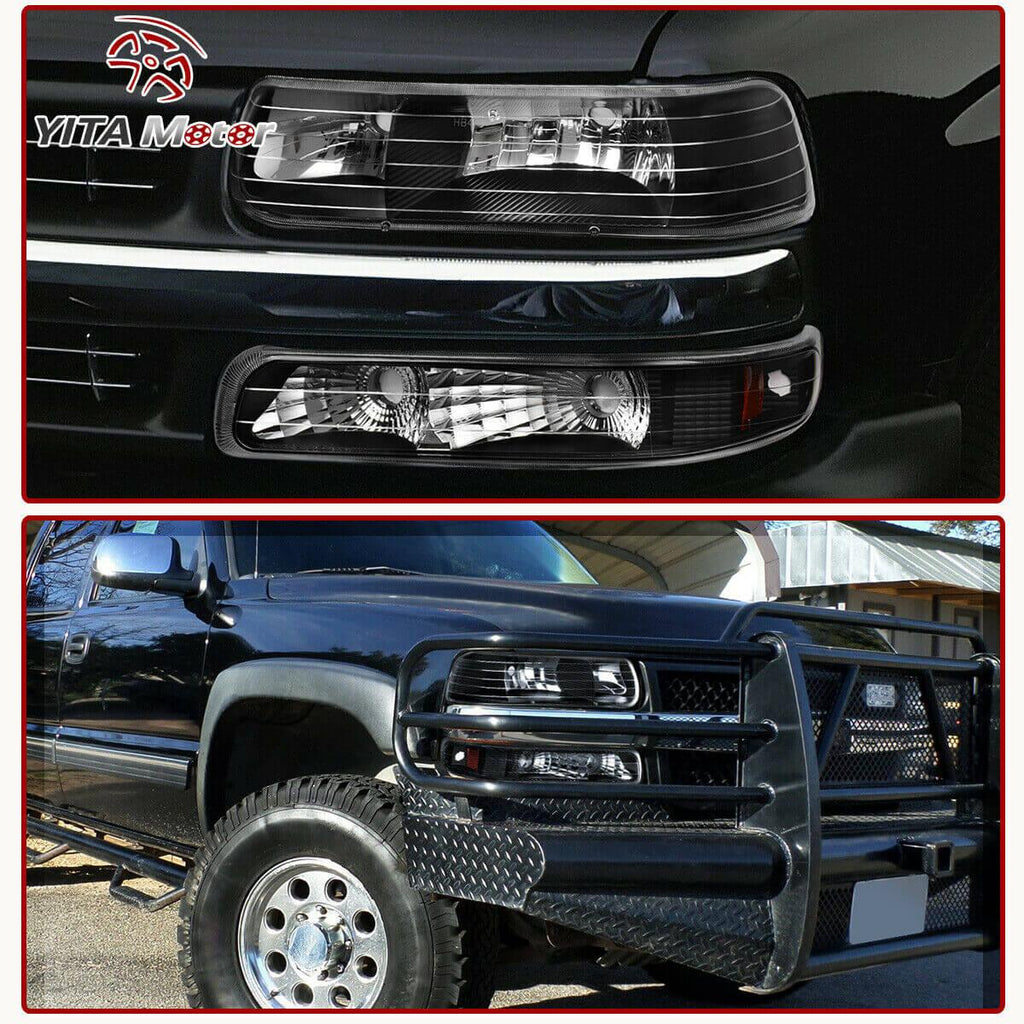

FOR 03-06 Chevrolet Tahoe Suburban 1500 Headlight Headlamp + Fog Light Assembly

: In stock

: YITAMotor

| Reviews

Free Shipping 3 - 5 Business Day Delivery

- SKU: HA01001W01_xS1s
- High grade ABS plastic
- Plug-n-play installation
- High Quality
- OEM manufacturers

    $74.79 $89.09

    QUESTIONS & ANSWERS

    Have a Question?

    Be the first to ask a question about this.

    Ask a Question
    files/TRUSTBADGE_b32a5629-9b5c-4644-87b0-8e8578d8ec5a.png

    Item Description:

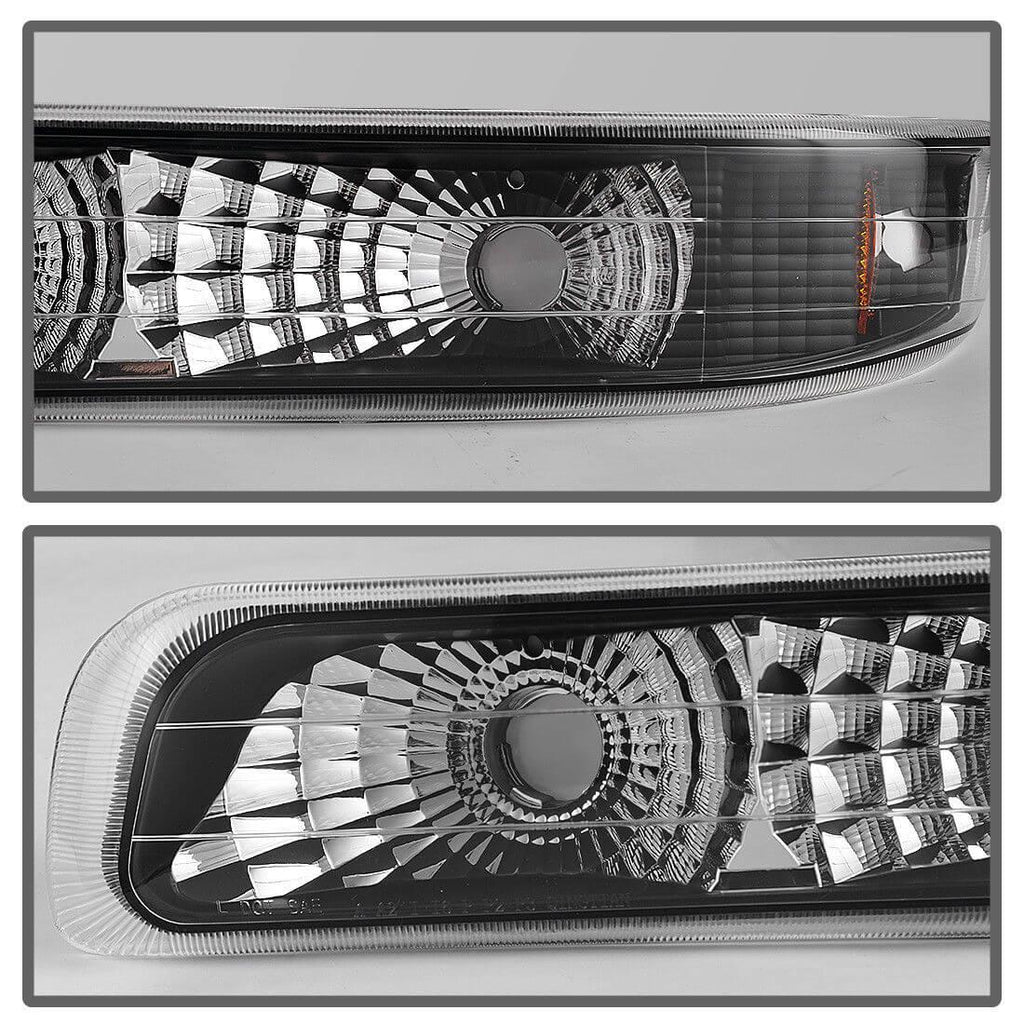

    Fog Light Parts:

    Fogs Bulb Style:880

    Power: 12V,27W Each Bulb

    Style: OE Factory Style

    Meet S.A.E. (Society of Automotive) / D.O.T. (Department of Transportation) requirement

    Lens Color: Clear

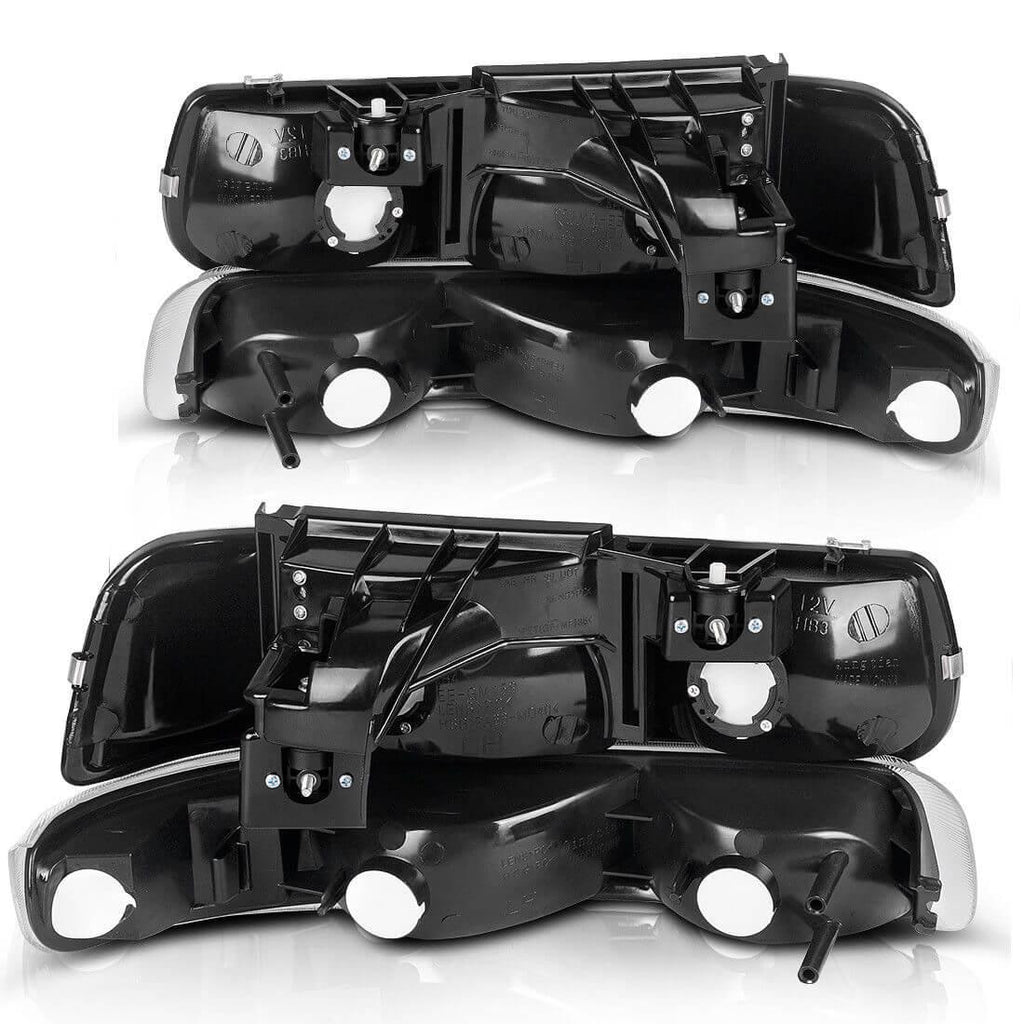

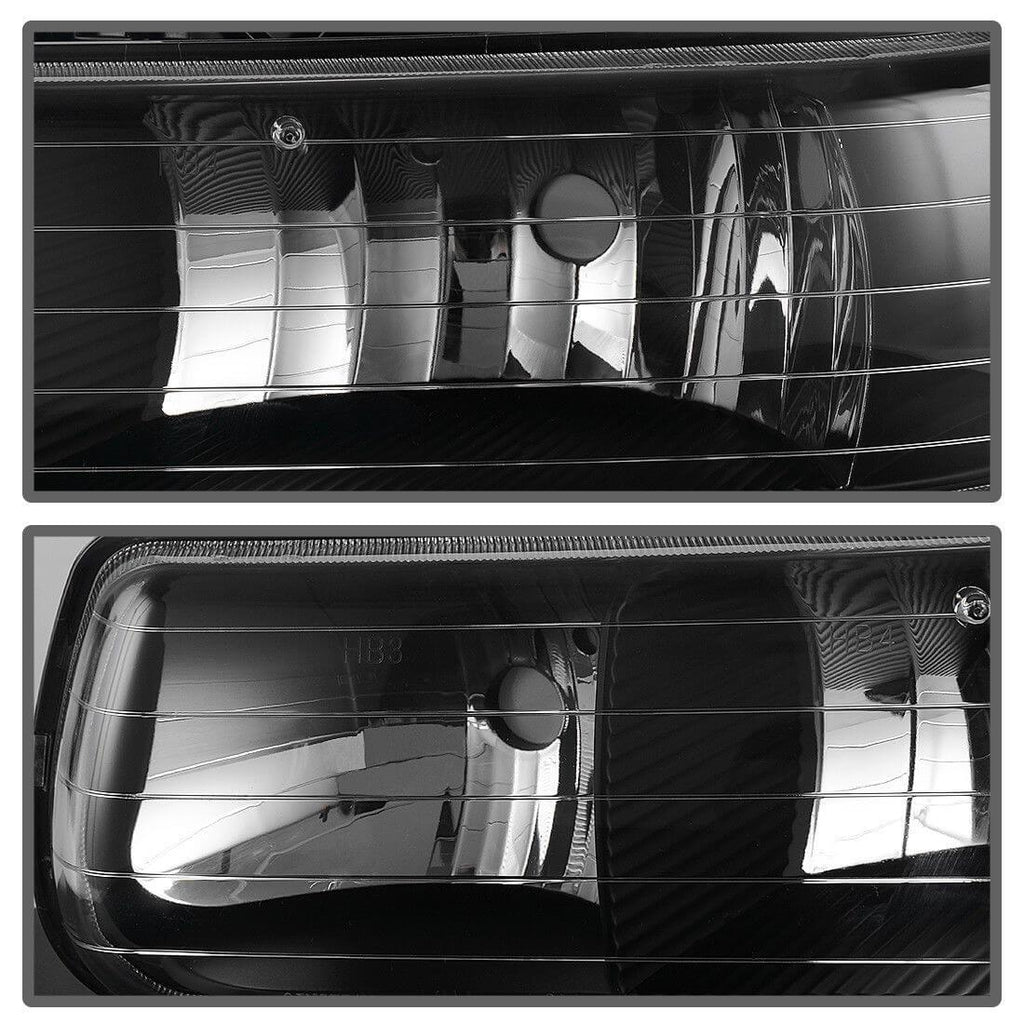

    Headlight Parts:

    OEM Part Number:GM2503187,GM2502187

    Interchage Part Number: 16526134,16526133

    SAE/DOT approved for street legal

    Made By OEM Approved & ISO Certified Manufacturers With Materials That Meets OEM Requirements

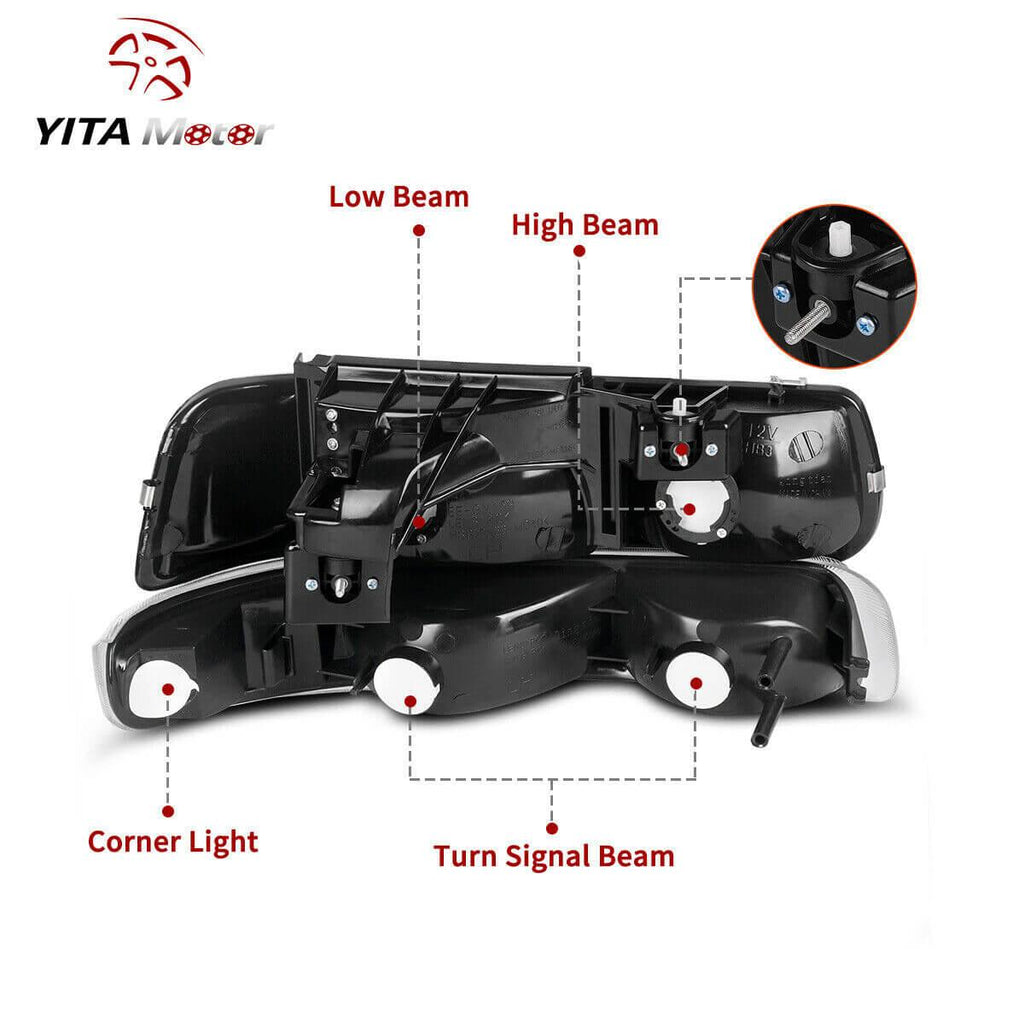

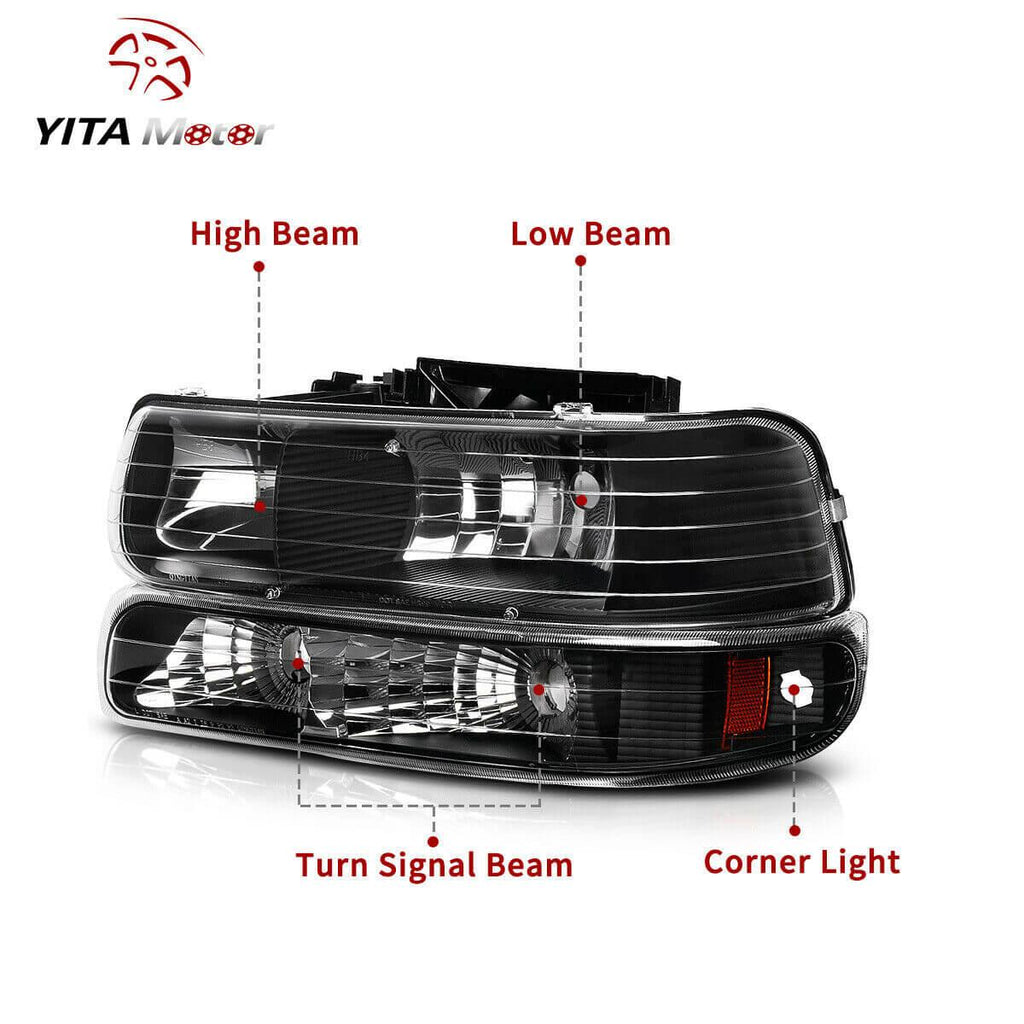

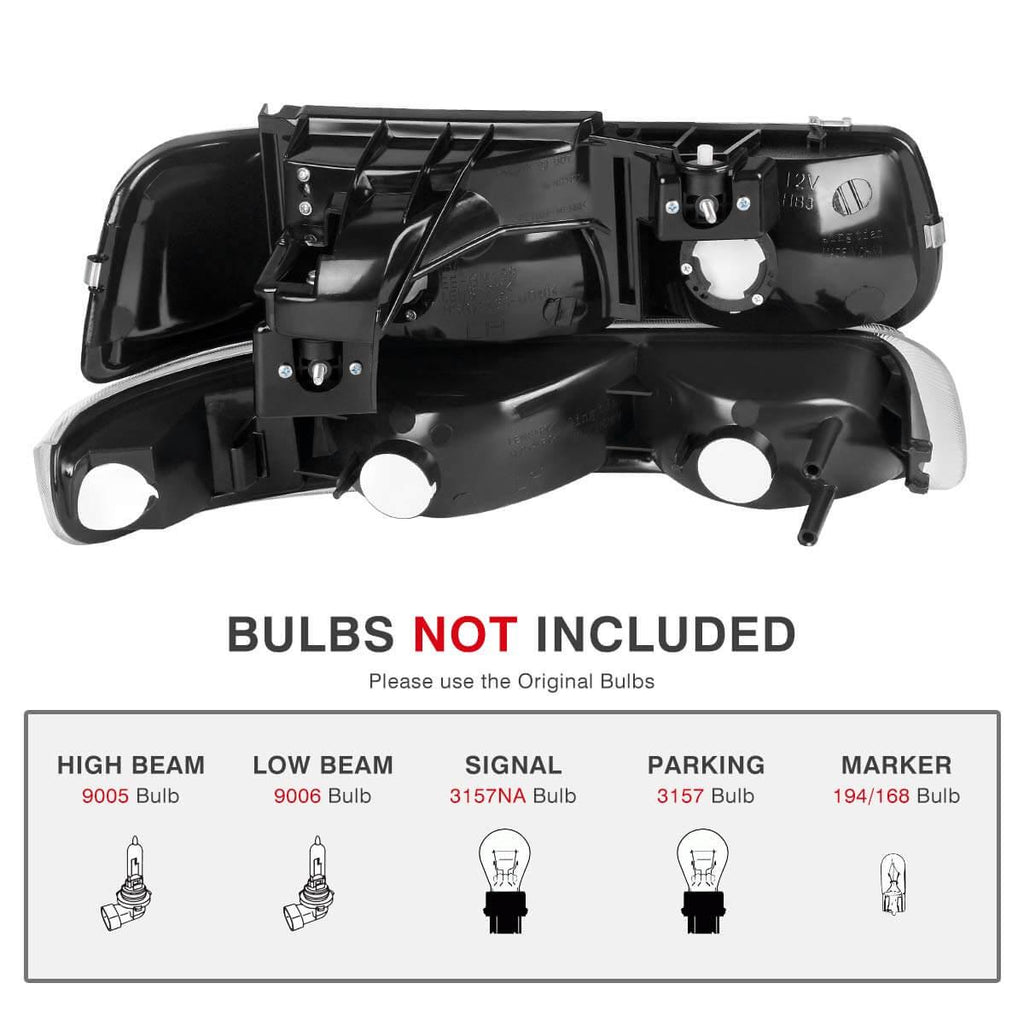

    Low Beam Bulb Type: 9006 HB4 (bulb not included)

    High Beam Bulb Type: 9005 Hb3 (bulb not included)

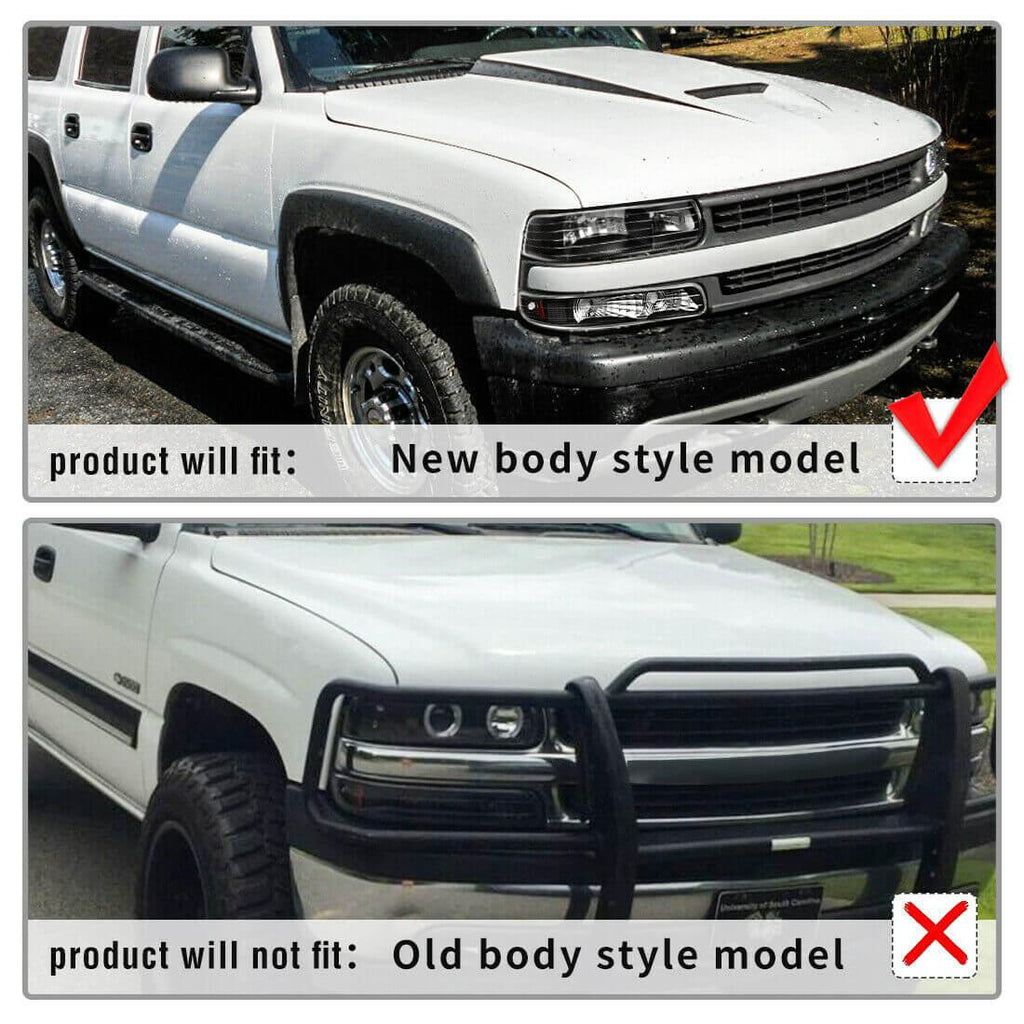

    Fitment:
    For 2003-2006 Chevrolet Tahoe

    For 2004-2006 Chevrolet Suburban 1500

    Package Includes:

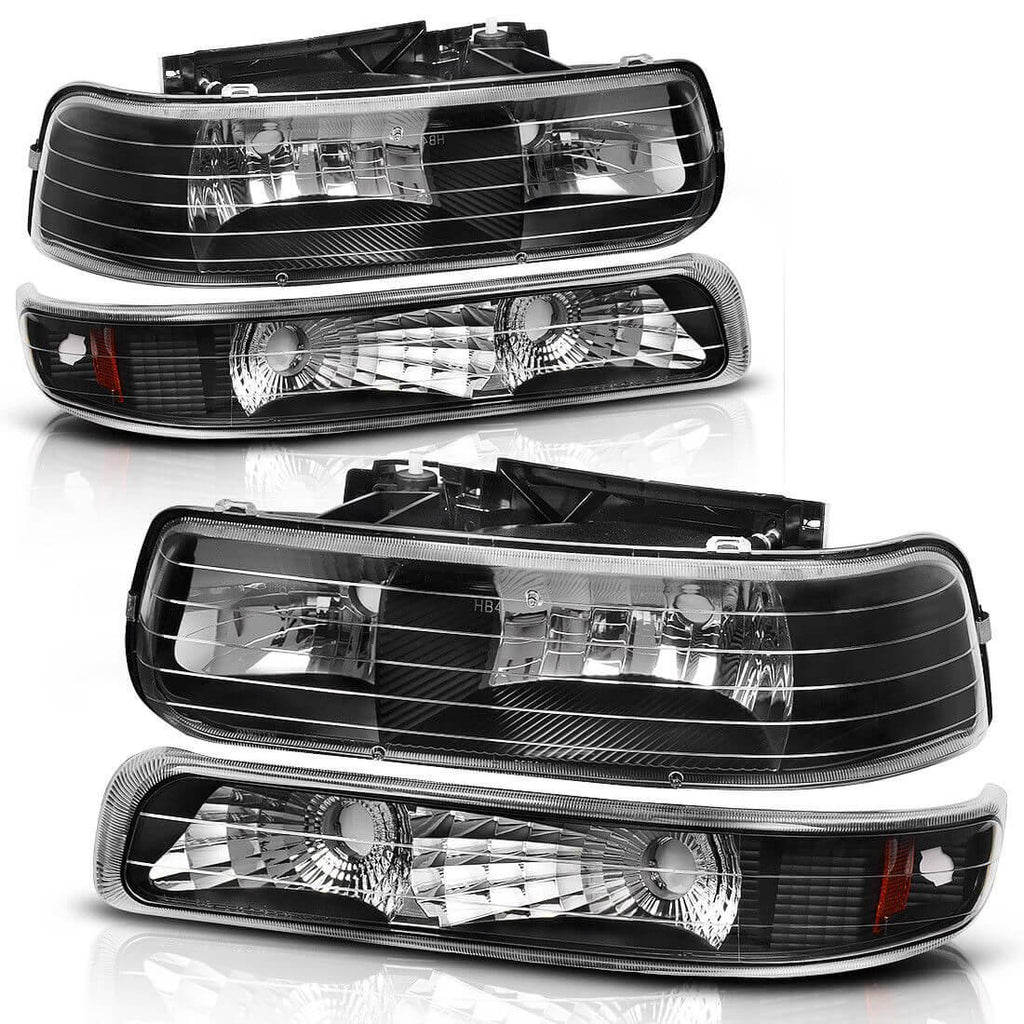

    1 pair set of Left Driver Side + Right Passenger Side Headlights Headlamps

    1 pair set of Left Driver Side + Right Passenger Side Fog Lights

    Notes:
    Before you begin to adjust the light, make sure check the alignment of your lights first. Park the vehicle about 10 to 25

    feet from the wall with the lights aimed at the wall. The centerlines of the headlights should not be any higher than 3.5

    feet above the ground.

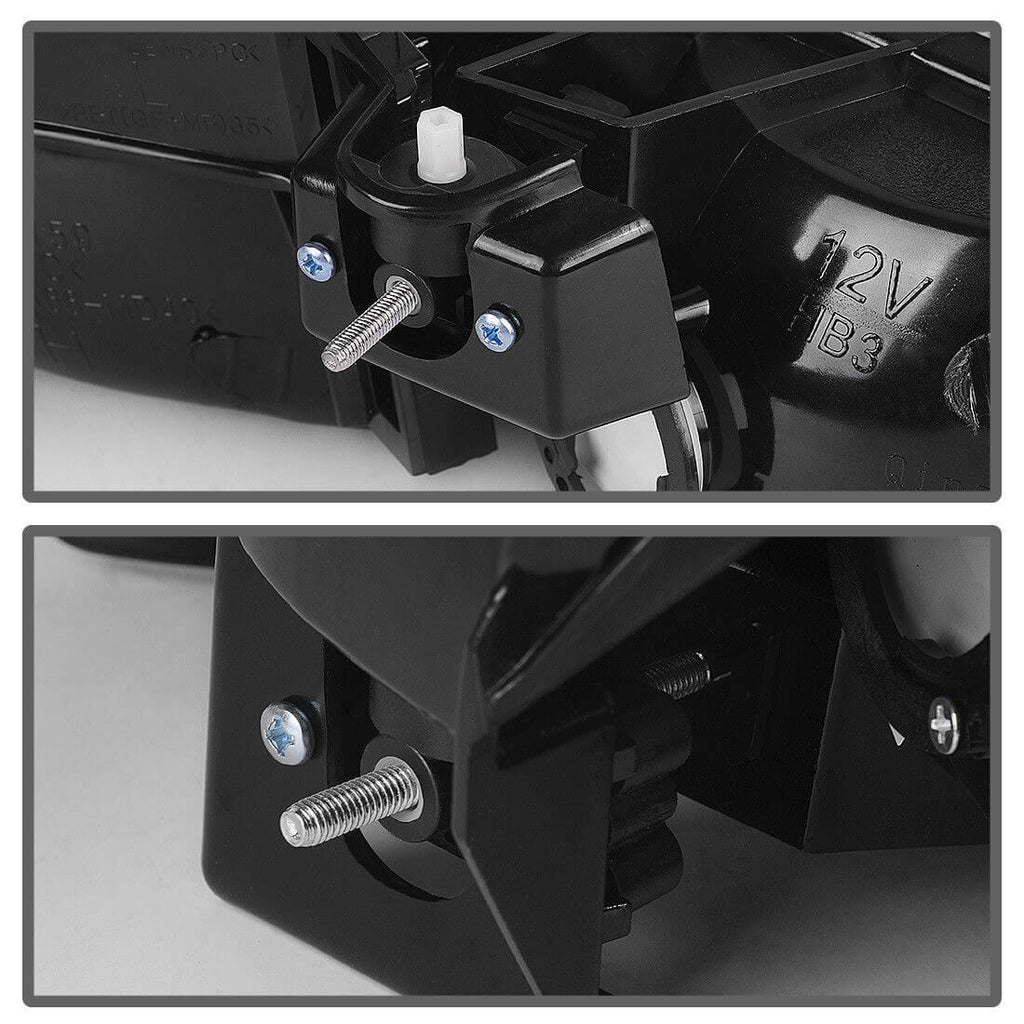

    1. Find the adjustment screws. Firstly, locate the adjustment screws on your vehicle.

    2. Adjust the headlights individually. The headlights should be adjusted one at a time. Put a rag or towel over a chair

    in front of the light you want to block. Covering the light assembly directly can damage the plastic lens.

    3. Adjust the vertical field. The screw on the top of the light housing should be turned clockwise to raise the lights and

    counterclockwise will lower the light. The headlight should be adjusted until the top of the most intense part of the light

    beam shines directly on or just below the center of the tape line on the wall.

    4. Adjust the horizontal field. The screw on the side of the light housing should be turned to get the right/left adjustment

    correct. Adjust the lens so that the most intense part of the beam is to the right of the vertical line.

    5. Test your results.
